ExpressionParser Class Reference

Interface for expression parsers. More...

#include <ExpressionParser.h>

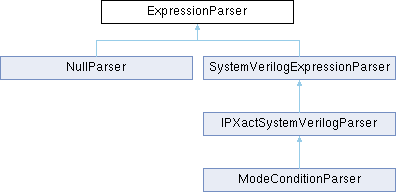

Inheritance diagram for ExpressionParser:

Public Member Functions
virtual	~ExpressionParser ()=default
	The destructor.
virtual int	baseForExpression (QStringView expression) const =0
virtual bool	isPlainValue (QStringView expression) const =0
virtual QString	parseExpression (QStringView expression, bool *validExpression=nullptr) const =0

Detailed Description

Interface for expression parsers.

Definition at line 21 of file ExpressionParser.h.

Constructor & Destructor Documentation

~ExpressionParser()

virtual ExpressionParser::~ExpressionParser ( )

virtualdefault

The destructor.

Member Function Documentation

baseForExpression()

virtual int ExpressionParser::baseForExpression ( QStringView expression ) const

pure virtual

Finds the common base in the expression.

Parameters

[in]

expression

The expression to search in.

Returns

The common base for the expression.

Implemented in NullParser, and SystemVerilogExpressionParser.

isPlainValue()

virtual bool ExpressionParser::isPlainValue ( QStringView expression ) const

pure virtual

Checks if the given expression is a plain value and does not need evaluation.

Parameters

[in]

expression

The expression to check.

Returns

True, if the expression is a plain value, otherwise false.

Implemented in NullParser, and SystemVerilogExpressionParser.

parseExpression()

virtual QString ExpressionParser::parseExpression ( QStringView expression, bool * validExpression = nullptr ) const

pure virtual

Parses an expression to decimal number.

Parameters

[in]	expression	The expression to parse.
[out]	validExpression	Set to true, if the parsing was successful, otherwise false.

Returns

The decimal value of the evaluated expression.

Implemented in NullParser, and SystemVerilogExpressionParser.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/ExpressionParser.h
