Interface for editing fields. More...

#include <FieldInterface.h>

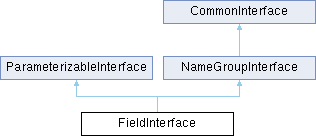

Inheritance diagram for FieldInterface:

Public Member Functions
	FieldInterface (QSharedPointer< FieldValidator > validator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter, ResetInterface *subInterface)

virtual	~FieldInterface ()=default

void	addField (int const &row, std::string const &newFieldName=std::string(""))

void	addField (std::string const &newFieldName=std::string(""))

bool	addFieldAccessPolicy (std::string const &fieldName)

void	copyFieldAccessPolicies (std::string const &fieldName, std::vector< int > const &selectedAccessPolicies)

void	copyRows (std::vector< int > const &selectedRows)

int	getAccessPolicyCount (std::string const &fieldName) const

std::string	getAccessString (std::string const &fieldName, int accessPolicyIndex=-1) const

AccessTypes::Access	getAccessType (std::string const &fieldName, int accessPolicyIndex=-1) const

int	getAllReferencesToIdInFieldAccessPolicy (std::string const &fieldName, int accessPolicyIndex, std::string const &valueID) const

virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const override final

std::vector< std::string >	getExpressionsInSelectedFields (std::vector< std::string > const &fieldNames) const

std::string	getID (std::string const &fieldName)

std::string	getIndexedItemName (int itemIndex) const final

std::string	getIsPresentExpression (std::string const &fieldName) const

std::string	getIsPresentFormattedExpression (std::string const &fieldName) const

std::string	getIsPresentValue (std::string const &fieldName, int const &baseNumber=0) const

virtual int	getItemIndex (std::string const &itemName) const override final

virtual std::vector< std::string >	getItemNames () const override final

ModeReferenceInterface *	getModeReferenceInterface () const

std::vector< std::pair< unsigned int, std::string > >	getModeReferences (std::string const &fieldName, int accessPolicyIndex) const

std::vector< std::pair< unsigned int, std::string > >	getModeReferencesInUse (std::string const &fieldName, int accessPolicyIndex) const

std::vector< std::pair< std::string, unsigned int > >	getModeRefs (std::string const &fieldName, int accessPolicyIndex) const

std::string	getModifiedWriteString (std::string const &fieldName, int accessPolicyIndex=-1) const

General::ModifiedWrite	getModifiedWriteValue (std::string const &fieldName) const

std::string	getOffsetExpression (std::string const &fieldName) const

std::string	getOffsetFormattedExpression (std::string const &fieldName) const

std::string	getOffsetValue (std::string const &fieldName, int const &baseNumber=0) const

int	getPasteRowCount () const

General::ReadAction	getReadAction (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getReadActionString (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getReadResponseExpression (std::string const &fieldName, int accessPolicyIndex) const

std::string	getReadResponseFormattedExpression (std::string const &fieldName, int accessPolicyIndex) const

std::string	getReadResponseValue (std::string const &fieldName, int accessPolicyIndex, int baseNumber=0) const

std::string	getReservedExpression (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getReservedFormattedExpression (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getReservedValue (std::string const &fieldName, int accessPolicyIndex=-1, int const &baseNumber=0) const

std::string	getResets (std::string const &fieldName) const

std::string	getResetsToolTip (std::string const &fieldName) const

ResetInterface *	getSubInterface () const

bool	getTestableBool (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getTestableValue (std::string const &fieldName, int accessPolicyIndex=-1) const

General::TestConstraint	getTestConstraint (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getTestConstraintString (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getVolatile (std::string const &fieldName) const

std::string	getWidthExpression (std::string const &fieldName) const

std::string	getWidthFormattedExpression (std::string const &fieldName) const

std::string	getWidthValue (std::string const &fieldName, int const &baseNumber=0) const

std::string	getWriteConstraint (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getWriteConstraintMaximumExpression (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getWriteConstraintMaximumFormattedExpression (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getWriteConstraintMaximumValue (std::string const &fieldName, int accessPolicyIndex=-1, int const &baseNumber=0) const

std::string	getWriteConstraintMinimumExpression (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getWriteConstraintMinimumFormattedExpression (std::string const &fieldName, int accessPolicyIndex=-1) const

std::string	getWriteConstraintMinimumValue (std::string const &fieldName, int accessPolicyIndex=-1, int const &baseNumber=0) const

bool	hasValidAccess (std::string const &fieldName, int accessPolicyIndex=-1) const

bool	hasValidAccessPolicyModeRefs (std::string const &fieldName, int accessPolicyIndex) const

bool	hasValidIsPresent (std::string const &fieldName) const

bool	hasValidOffset (std::string const &fieldName) const

bool	hasValidReadResponse (std::string const &fieldName, int accessPolicyIndex) const

bool	hasValidReserved (std::string const &fieldName, int accessPolicyIndex) const

bool	hasValidResets (std::string const &fieldName) const

bool	hasValidWidth (std::string const &fieldName) const

bool	hasValidWriteValueConstraint (std::string const &fieldName, int accessPolicyIndex) const

bool	hasWriteConstraint (std::string const &fieldName) const

virtual int	itemCount () const override final

virtual bool	itemHasValidName (std::string const &itemName) const override final

int	pasteFieldaccessPolicies (std::string const &fieldName)

std::vector< std::string >	pasteRows ()

bool	removeField (std::string const &fieldName)

bool	removeFieldAccessPolicy (std::string const &fieldName, int accessPolicyIndex)

bool	setAccess (std::string const &fieldName, std::string const &accessType, int accessPolicyIndex=-1) const

void	setFields (QSharedPointer< QList< QSharedPointer< Field > > > newFields)

bool	setID (std::string const &fieldName, std::string const &newID)

bool	setIsPresent (std::string const &fieldName, std::string const &newIsPresent)

void	setModeReferenceInterface (ModeReferenceInterface *modeRefInterface)

bool	setModeReferences (std::string const &fieldName, int accessPolicyIndex, std::vector< std::pair< unsigned int, std::string > > const &newModeRefs)

bool	setModifiedWrite (std::string const &fieldName, std::string const &newModifiedWrite, int accessPolicyIndex=-1)

virtual bool	setName (std::string const &currentName, std::string const &newName) override final

bool	setOffset (std::string const &fieldName, std::string const &newOffset)

bool	setReadAction (std::string const &fieldName, std::string const &newReadAction, int accessPolicyIndex=-1)

bool	setReadResponse (std::string const &fieldName, int accessPolicyIndex, std::string const &newReadResponse) const

bool	setReserved (std::string const &fieldName, std::string const &newReserved, int accessPolicyIndex=-1)

bool	setTestable (std::string const &fieldName, std::string const &newTestable, int accessPolicyIndex=-1) const

bool	setTestConstraint (std::string const &fieldName, std::string const &newTestConstraint, int accessPolicyIndex=-1) const

bool	setVolatile (std::string const &fieldName, std::string const &newVolatile)

bool	setWidth (std::string const &fieldName, std::string const &newWidth)

bool	setWriteConstraint (std::string const &fieldName, std::string const &newConstraintText, int accessPolicyIndex=-1)

bool	setWriteConstraintMaximum (std::string const &fieldName, std::string const &newWriteConstraintMaximum, int accessPolicyIndex=-1)

bool	setWriteConstraintMinimum (std::string const &fieldName, std::string const &newWriteConstraintMinimum, int accessPolicyIndex=-1)

virtual bool	validateItems () const override final

Public Member Functions inherited from ParameterizableInterface
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.

	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)

virtual	~ParameterizableInterface ()=default

ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete

Public Member Functions inherited from NameGroupInterface
	NameGroupInterface ()

	NameGroupInterface (const NameGroupInterface &other)=delete
	No copying. No assignment.

virtual	~NameGroupInterface ()=default

virtual std::string	getDescription (std::string const &itemName) const

virtual std::string	getDisplayName (std::string const &itemName) const

virtual std::string	getShortDescription (std::string const &itemName) const

NameGroupInterface &	operator= (const NameGroupInterface &other)=delete

virtual bool	setDescription (std::string const &itemName, std::string const &newDescription)

virtual bool	setDisplayName (std::string const &itemName, std::string const &newDisplayName) const

bool	setShortDescription (std::string const &itemName, std::string const &newShortDescription) const

Public Member Functions inherited from CommonInterface
	CommonInterface ()=default

	CommonInterface (const CommonInterface &other)=delete
	No copying. No assignment.

virtual	~CommonInterface ()=default

CommonInterface &	operator= (const CommonInterface &other)=delete

Additional Inherited Members
Protected Member Functions inherited from ParameterizableInterface
QString	formattedValueFor (QString const &expression) const

QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const

QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const

Protected Member Functions inherited from CommonInterface
QString	getUniqueName (std::string const &newName, std::string const &itemTypeName) const

bool	nameHasChanged (std::string const &newName, std::string const &oldName) const

Detailed Description

Interface for editing fields.

Definition at line 38 of file FieldInterface.h.

Constructor & Destructor Documentation

◆ FieldInterface()

FieldInterface::FieldInterface	(	QSharedPointer< FieldValidator >	validator,
		QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter,
		ResetInterface *	subInterface )

The constructor.

Parameters

[in]	validator	Validator for fields.
[in]	expressionParser	Parser for expressions.
[in]	expressionFormatter	Formatter for expressions.
[in]	subInterface	Interface for accessing resets.

◆ ~FieldInterface()

virtual FieldInterface::~FieldInterface ( )

virtualdefault

The destructor.

Member Function Documentation

◆ addField() [1/2]

void FieldInterface::addField	(	int const &	row,
		std::string const &	newFieldName = std::string("") )

Add a new field, inserting it to specified position given by row.

Parameters

[in]	row	Row of the new field.
[in]	newFieldName	Name of the new field.

◆ addField() [2/2]

void FieldInterface::addField ( std::string const & newFieldName = std::string("") )

Add a new field. This overload should be preferred when using Python.

Parameters

[in] newFieldName Name of the new field.

◆ addFieldAccessPolicy()

bool FieldInterface::addFieldAccessPolicy ( std::string const & fieldName )

Add a new field access policy to a selected field.

Parameters

[in] fieldName The field to add a new access policy to.

Returns: True, if successful, otherwise false.

◆ copyFieldAccessPolicies()

void FieldInterface::copyFieldAccessPolicies	(	std::string const &	fieldName,
		std::vector< int > const &	selectedAccessPolicies )

Copy selected field access policies to clipboard.

Parameters

[in]	fieldName	The field containing the access policies.
[in]	selectedAccessPolicies	List containing the indices of the selected access policies.

◆ copyRows()

void FieldInterface::copyRows ( std::vector< int > const & selectedRows )

Copy the selected fields.

Parameters

[in] selectedRows Indexes of the selected fields.

◆ getAccessPolicyCount()

int FieldInterface::getAccessPolicyCount ( std::string const & fieldName ) const

Get the access policy count of the given field.

Parameters

[in] fieldName Description

Returns: The number of field access policies in the given field.

◆ getAccessString()

std::string FieldInterface::getAccessString	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the access string of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: Access string of the selected field or field access policy.

◆ getAccessType()

AccessTypes::Access FieldInterface::getAccessType	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the access of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: Access of the selected field or field access policy.

◆ getAllReferencesToIdInFieldAccessPolicy()

int FieldInterface::getAllReferencesToIdInFieldAccessPolicy	(	std::string const &	fieldName,
		int	accessPolicyIndex,
		std::string const &	valueID ) const

Get the number of references to a parameter used in the different sub-elements of the field access policy.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	Index of the field access policy.
[in]	valueID	The parameter (ID) to check.

Returns: The number of references to a parameter used within the field access policy.

◆ getAllReferencesToIdInItem()

virtual int FieldInterface::getAllReferencesToIdInItem	(	const std::string &	itemName,
		std::string const &	valueID ) const

finaloverridevirtual

Calculate all the references to the selected ID in the selected item.

Parameters

[in]	itemName	Name of the selected item.
[in]	valueID	The selected ID.

Returns: Number of references to the selected ID in the selected item.

Implements ParameterizableInterface.

◆ getExpressionsInSelectedFields()

std::vector< std::string > FieldInterface::getExpressionsInSelectedFields ( std::vector< std::string > const & fieldNames ) const

Get the expressions in the selected fields.

Parameters

[in] fieldNames Names of the selected fields.

Returns: The expressions of the selected fields.

◆ getID()

std::string FieldInterface::getID ( std::string const & fieldName )

Get the ID of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: ID of the selected field.

◆ getIndexedItemName()

std::string FieldInterface::getIndexedItemName ( int itemIndex ) const

finalvirtual

Get name of the indexed item.

Parameters

[in] itemIndex Index of the selected item.

Returns: Name of the selected item.

Implements NameGroupInterface.

◆ getIsPresentExpression()

std::string FieldInterface::getIsPresentExpression ( std::string const & fieldName ) const

Get the is present expression of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Is present expression of the selected parameter.

◆ getIsPresentFormattedExpression()

std::string FieldInterface::getIsPresentFormattedExpression ( std::string const & fieldName ) const

Get the formatted is present expression of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Formatted is present expression of the selected field.

◆ getIsPresentValue()

std::string FieldInterface::getIsPresentValue	(	std::string const &	fieldName,
		int const &	baseNumber = 0 ) const

Get the calculated is present value of the selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	baseNumber	Base for displaying the value.

Returns: Calculated is present value of the selected field.

◆ getItemIndex()

virtual int FieldInterface::getItemIndex ( std::string const & itemName ) const

finaloverridevirtual

Get index of the selected item.

Parameters

[in] itemName Name of the selected item.

Returns: Index of the selected item.

Implements NameGroupInterface.

◆ getItemNames()

virtual std::vector< std::string > FieldInterface::getItemNames ( ) const

finaloverridevirtual

Get the names of the available items.

Returns: Names of the available items.

Implements CommonInterface.

◆ getModeReferenceInterface()

ModeReferenceInterface * FieldInterface::getModeReferenceInterface ( ) const

Get the mode reference interface in use.

@return The mode reference interface.

◆ getModeReferences()

std::vector< std::pair< unsigned int, std::string > > FieldInterface::getModeReferences	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Get mode references of given field access policy.

Parameters

[in]	fieldName	The name of the field, which contains the field access policy.
[in]	accessPolicyIndex	Index of the field access policy whose mode references to get.

Returns: The mode references of the field access policy.

◆ getModeReferencesInUse()

std::vector< std::pair< unsigned int, std::string > > FieldInterface::getModeReferencesInUse	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Get all mode references of field access policies except for the one given by index.

Parameters

[in]	fieldName	The field containing the field access policies.
[in]	accessPolicyIndex	The index of the access policy whose mode references are not to get.

Returns: All mode references, except for mode references of field access policy given by index.

◆ getModeRefs()

std::vector< std::pair< std::string, unsigned int > > FieldInterface::getModeRefs	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Get the mode references of a given field access policy.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	Index of the field access policy.

Returns: A vector containing the mode references as a string-int pair.

◆ getModifiedWriteString()

std::string FieldInterface::getModifiedWriteString	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the modified write value string of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: Modified write value string of the selected field or field access policy.

◆ getModifiedWriteValue()

General::ModifiedWrite FieldInterface::getModifiedWriteValue ( std::string const & fieldName ) const

Get the modified write value of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Modified write value of the selected field.

◆ getOffsetExpression()

std::string FieldInterface::getOffsetExpression ( std::string const & fieldName ) const

Get the offset expression of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Offset expression of the selected field.

◆ getOffsetFormattedExpression()

std::string FieldInterface::getOffsetFormattedExpression ( std::string const & fieldName ) const

Get the formatted offset expression of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Formatted offset expression of the selected field.

◆ getOffsetValue()

std::string FieldInterface::getOffsetValue	(	std::string const &	fieldName,
		int const &	baseNumber = 0 ) const

Get the calculated offset value of the selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	baseNumber	Base for displaying the value.

Returns: Calculated offset value of the selected field.

◆ getPasteRowCount()

int FieldInterface::getPasteRowCount ( ) const

Get the number of pasted fields.

Returns: Number of the pasted fields.

◆ getReadAction()

General::ReadAction FieldInterface::getReadAction	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the read action of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field.

Returns: Read action of the selected field or field access policy.

◆ getReadActionString()

std::string FieldInterface::getReadActionString	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the read action string of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: Read action string of the selected field access policy of selected field.

◆ getReadResponseExpression()

std::string FieldInterface::getReadResponseExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Get the read response of a field access policy as an expression.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	Index of the field access policy.

Returns: The read response as an expression.

◆ getReadResponseFormattedExpression()

std::string FieldInterface::getReadResponseFormattedExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Get the read response of a field access policy as a formatted expression.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	Index of the field access policy.

Returns: The read response as a formatted expression.

◆ getReadResponseValue()

std::string FieldInterface::getReadResponseValue	(	std::string const &	fieldName,
		int	accessPolicyIndex,
		int	baseNumber = 0 ) const

Get the evaluated read response value of a field access policy.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	Index of the field access policy.
[in]	baseNumber	Base for displaying the value.

Returns: The evaluated read response.

◆ getReservedExpression()

std::string FieldInterface::getReservedExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the reserved expression of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Reserved expression of the selected parameter.

◆ getReservedFormattedExpression()

std::string FieldInterface::getReservedFormattedExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the formatted reserved expression of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Formatted reserved expression of the selected field or field access policy.

◆ getReservedValue()

std::string FieldInterface::getReservedValue	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1,
		int const &	baseNumber = 0 ) const

Get the calculated reserved value of the selected field or field access policy, which can be specified by index, for getting the reserved value from a field access policy of a 2022 standard compliant field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The selected access policy index.
[in]	baseNumber	Base for displaying the value.

Returns: Calculated reserved value of the selected field.

◆ getResets()

std::string FieldInterface::getResets ( std::string const & fieldName ) const

Get the reset values of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Reset values of the selected field.

◆ getResetsToolTip()

std::string FieldInterface::getResetsToolTip ( std::string const & fieldName ) const

Get the tooltip of the reset values of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Tooltip constructed from the reset values of the selected field.

◆ getSubInterface()

ResetInterface * FieldInterface::getSubInterface ( ) const

Get the sub interface.

Returns: Interface for accessing resets.

◆ getTestableBool()

bool FieldInterface::getTestableBool	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the testable bool of the selected field or field access policy. Access policy index is provided only when getting the testable value of a field access policy within a 2022 std revision field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Testable bool of the selected field.

◆ getTestableValue()

std::string FieldInterface::getTestableValue	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the testable string of the selected field access policy of a selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: Testable string of the selected field access policy.

◆ getTestConstraint()

General::TestConstraint FieldInterface::getTestConstraint	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the test constraint of the selected field or field access policy. Access policy index is provided only when getting the test constraint of a field access policy within a 2022 std revision field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Test constraint of the selected field.

◆ getTestConstraintString()

std::string FieldInterface::getTestConstraintString	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the test constraint string of the selected field. Access policy index is provided only when getting the test constraint of a field access policy within a 2022 std revision field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Test constraint string of the selected field.

◆ getVolatile()

std::string FieldInterface::getVolatile ( std::string const & fieldName ) const

Get the volatile status of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Volatile status of the selected field.

◆ getWidthExpression()

std::string FieldInterface::getWidthExpression ( std::string const & fieldName ) const

Get the bit width expression of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Bit width expression of the selected field.

◆ getWidthFormattedExpression()

std::string FieldInterface::getWidthFormattedExpression ( std::string const & fieldName ) const

Get the formatted bit width expression of the selected field.

Parameters

[in] fieldName Name of the selected field.

Returns: Formatted bit width expression of the selected field.

◆ getWidthValue()

std::string FieldInterface::getWidthValue	(	std::string const &	fieldName,
		int const &	baseNumber = 0 ) const

Get the calculated bit width value of the selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	baseNumber	Base for displaying the value.

Returns: Calculated bit width value of the selected parameter.

◆ getWriteConstraint()

std::string FieldInterface::getWriteConstraint	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the write value constraint type of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: The write value constraint type of the selected field or field access policy.

◆ getWriteConstraintMaximumExpression()

std::string FieldInterface::getWriteConstraintMaximumExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the write value constraint maximum expression of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Write value constraint maximum expression of the selected parameter.

◆ getWriteConstraintMaximumFormattedExpression()

std::string FieldInterface::getWriteConstraintMaximumFormattedExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the formatted write value constraint maximum expression of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Formatted write value constraint maximum expression of the selected field or field access policy.

◆ getWriteConstraintMaximumValue()

std::string FieldInterface::getWriteConstraintMaximumValue	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1,
		int const &	baseNumber = 0 ) const

Get the calculated write value constraint maximum value of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.
[in]	baseNumber	Base for displaying the value.

Returns: Calculated write value constraint maximum value of the selected field or field access policy.

◆ getWriteConstraintMinimumExpression()

std::string FieldInterface::getWriteConstraintMinimumExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the write value constraint minimum expression of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Write value constraint minimum expression of the selected parameter.

◆ getWriteConstraintMinimumFormattedExpression()

std::string FieldInterface::getWriteConstraintMinimumFormattedExpression	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Get the formatted write value constraint minimum expression of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: Formatted write value constraint minimum expression of the selected field or field access policy.

◆ getWriteConstraintMinimumValue()

std::string FieldInterface::getWriteConstraintMinimumValue	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1,
		int const &	baseNumber = 0 ) const

Get the calculated write value constraint minimum value of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.
[in]	baseNumber	Base for displaying the value.

Returns: Calculated write value constraint minimum value of the selected field or field access policy.

◆ hasValidAccess()

bool FieldInterface::hasValidAccess	(	std::string const &	fieldName,
		int	accessPolicyIndex = -1 ) const

Check if the selected field or field access policy has a valid access.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the field access policy to validate.

Returns: True, if the access is valid, false otherwise.

◆ hasValidAccessPolicyModeRefs()

bool FieldInterface::hasValidAccessPolicyModeRefs	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Checks if the field access policy given by index has valid mode references.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	The index of the field access policy to check.

Returns: True, if the field access policy's mode references are valid, otherwise false.

◆ hasValidIsPresent()

bool FieldInterface::hasValidIsPresent ( std::string const & fieldName ) const

Check if the selected field has a valid is present.

Parameters

[in] fieldName Name of the selected field.

Returns: True, if the is present is valid, false otherwise.

◆ hasValidOffset()

bool FieldInterface::hasValidOffset ( std::string const & fieldName ) const

Check if the selected field has a valid offset.

Parameters

[in] fieldName Name of the selected field.

Returns: True, if the offset is valid, false otherwise.

◆ hasValidReadResponse()

bool FieldInterface::hasValidReadResponse	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Check if the selected field access policy has a valid read response.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the field access policy to validate.

Returns: True, if the read response is valid, false otherwise.

◆ hasValidReserved()

bool FieldInterface::hasValidReserved	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Check if the selected field access policy has a valid reserved value.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the field access policy to validate.

Returns: True, if the reserved is valid, false otherwise.

◆ hasValidResets()

bool FieldInterface::hasValidResets ( std::string const & fieldName ) const

Check if the selected field has valid reset values.

Parameters

[in] fieldName Name of the selected field.

Returns: True, if the reset values are valid, false otherwise.

◆ hasValidWidth()

bool FieldInterface::hasValidWidth ( std::string const & fieldName ) const

Check if the selected field has a valid bit width.

Parameters

[in] fieldName Name of the selected field.

Returns: True, if the bit width is valid, false otherwise.

◆ hasValidWriteValueConstraint()

bool FieldInterface::hasValidWriteValueConstraint	(	std::string const &	fieldName,
		int	accessPolicyIndex ) const

Check if the selected field access policy has a valid write value constraint.

Parameters

[in]	fieldName	Name of the selected field.
[in]	accessPolicyIndex	Index of the field access policy to validate.

Returns: True, if the write value constraint is valid, false otherwise.

◆ hasWriteConstraint()

bool FieldInterface::hasWriteConstraint ( std::string const & fieldName ) const

Check if the selected field or field access policy has a write value constraint. Access policy index is provided only when checking the existence of a write constraint of a field access policy within a 2022 std revision field.

Parameters

[in] fieldName Name of the selected field.

Returns: True, if the selected field or field access policy has write value constraint, false otherwise.

◆ itemCount()

virtual int FieldInterface::itemCount ( ) const

finaloverridevirtual

Get the number of available items.

Returns: Number of available items.

Implements CommonInterface.

◆ itemHasValidName()

virtual bool FieldInterface::itemHasValidName ( std::string const & itemName ) const

finaloverridevirtual

Check if the selected item has a valid name.

Parameters

[in] itemName Name of the selected item.

Returns: True, if the name is valid, false otherwise.

Implements NameGroupInterface.

◆ pasteFieldaccessPolicies()

int FieldInterface::pasteFieldaccessPolicies ( std::string const & fieldName )

Paste the selected field access policies.

Parameters

[in] fieldName The name of the field to paste into.

Returns: The number of pasted field access policies.

◆ pasteRows()

std::vector< std::string > FieldInterface::pasteRows ( )

Paste the selected fields.

Returns: Names of the pasted fields.

◆ removeField()

bool FieldInterface::removeField ( std::string const & fieldName )

Remove the selected field.

Parameters

[in] FieldName Name of the selected field.

Returns: True, if successful, false otherwise.

◆ removeFieldAccessPolicy()

bool FieldInterface::removeFieldAccessPolicy	(	std::string const &	fieldName,
		int	accessPolicyIndex )

Remove the given field access policy from a specific field.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	The index of the field access policy to be removed.

Returns: True, if successful, otherwise false.

◆ setAccess()

bool FieldInterface::setAccess	(	std::string const &	fieldName,
		std::string const &	accessType,
		int	accessPolicyIndex = -1 ) const

Set the access of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newAccess	The new access of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setFields()

void FieldInterface::setFields ( QSharedPointer< QList< QSharedPointer< Field > > > newFields )

Set available fields.

Parameters

[in] newFields The new fields.

◆ setID()

bool FieldInterface::setID	(	std::string const &	fieldName,
		std::string const &	newID )

Set a ID for the selected field.

Parameters

[in]	parameterName	Name of the selected parameter.
[in]	newID	New ID.

Returns: True, if successful, false otherwise.

◆ setIsPresent()

bool FieldInterface::setIsPresent	(	std::string const &	fieldName,
		std::string const &	newIsPresent )

Set a new is present value for the selected field.

Parameters

[in]	parameterName	Name of the selected parameter.
[in]	newIsPresent	New is present value.

Returns: True, if successful, false otherwise.

◆ setModeReferenceInterface()

void FieldInterface::setModeReferenceInterface ( ModeReferenceInterface * modeRefInterface )

Set the mode reference interface to be used.

Parameters

[in] modeRefInterface The mode reference interface to be used.

◆ setModeReferences()

bool FieldInterface::setModeReferences	(	std::string const &	fieldName,
		int	accessPolicyIndex,
		std::vector< std::pair< unsigned int, std::string > > const &	newModeRefs )

Set the mode references of a field access policy.

Parameters

[in]	fieldName	The name of the field, which contains the field access policy.
[in]	accessPolicyIndex	Index of the field access policy whose mode references to set.
[in]	newModeRefs	The mode references to set.

Returns: True, if the operation was successful, otherwise false.

◆ setModifiedWrite()

bool FieldInterface::setModifiedWrite	(	std::string const &	fieldName,
		std::string const &	newModifiedWrite,
		int	accessPolicyIndex = -1 )

Set the modified write value of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newModifiedWrite	The new modified write value of the selected field.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setName()

virtual bool FieldInterface::setName	(	std::string const &	currentName,
		std::string const &	newName )

finaloverridevirtual

Set a new name for the selected item.

Parameters

[in]	currentName	Name of the selected item.
[in]	newName	New name for the item.

Returns: True, if successful, false otherwise.

Implements NameGroupInterface.

◆ setOffset()

bool FieldInterface::setOffset	(	std::string const &	fieldName,
		std::string const &	newOffset )

Set a new offset value for the selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newOffset	New offset value.

Returns: True, if successful, false otherwise.

◆ setReadAction()

bool FieldInterface::setReadAction	(	std::string const &	fieldName,
		std::string const &	newReadAction,
		int	accessPolicyIndex = -1 )

Set the read action of the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newReadAction	The new read action.
[in]	accessPolicyIndex	Index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setReadResponse()

bool FieldInterface::setReadResponse	(	std::string const &	fieldName,
		int	accessPolicyIndex,
		std::string const &	newReadResponse ) const

Set the read response of a selected field access policy.

Parameters

[in]	fieldName	The name of the field.
[in]	accessPolicyIndex	Index of the field access policy.
[in]	newReadResponse	The read response to set.

Returns: True, if successful, otherwise false.

◆ setReserved()

bool FieldInterface::setReserved	(	std::string const &	fieldName,
		std::string const &	newReserved,
		int	accessPolicyIndex = -1 )

Set a new reserved value for the selected field or field access policy.

Parameters

[in]	parameterName	Name of the selected parameter.
[in]	newReserved	New reserved value.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setTestable()

bool FieldInterface::setTestable	(	std::string const &	fieldName,
		std::string const &	newTestable,
		int	accessPolicyIndex = -1 ) const

Set the testable value of either a selected field or a selected field access policy within a field. Access policy index is provided only when setting a testable value of a field access policy within a std revision 2022 field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newTestable	The new testable value of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setTestConstraint()

bool FieldInterface::setTestConstraint	(	std::string const &	fieldName,
		std::string const &	newTestConstraint,
		int	accessPolicyIndex = -1 ) const

Set the test constraint of the selected field or field access policy. Access policy index is provided only when setting the test constraint of a field access policy within a 2022 std revision field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newTestConstraint	The new test constraint of the selected field.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setVolatile()

bool FieldInterface::setVolatile	(	std::string const &	fieldName,
		std::string const &	newVolatile )

Set the volatile status of the selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newVolatile	The new volatile status of the selected field.

Returns: True, if successful, false otherwise.

◆ setWidth()

bool FieldInterface::setWidth	(	std::string const &	fieldName,
		std::string const &	newWidth )

Set a new bit width value for the selected field.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newWidth	New bit width value.

Returns: True, if successful, false otherwise.

◆ setWriteConstraint()

bool FieldInterface::setWriteConstraint	(	std::string const &	fieldName,
		std::string const &	newConstraintText,
		int	accessPolicyIndex = -1 )

Set a new write value constraint type for the selected field or field access policy.

Parameters

[in]	fieldName	Name of the selected field.
[in]	newConstraintText	The new write value constraint type.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setWriteConstraintMaximum()

bool FieldInterface::setWriteConstraintMaximum	(	std::string const &	fieldName,
		std::string const &	newWriteConstraintMaximum,
		int	accessPolicyIndex = -1 )

Set a new write value constraint maximum value for the selected field or field access policy.

Parameters

[in]	parameterName	Name of the selected parameter.
[in]	newWriteConstraintMaximum	New write value constraint maximum value.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ setWriteConstraintMinimum()

bool FieldInterface::setWriteConstraintMinimum	(	std::string const &	fieldName,
		std::string const &	newWriteConstraintMinimum,
		int	accessPolicyIndex = -1 )

Set a new write value constraint minimum value for the selected field or field access policy.

Parameters

[in]	parameterName	Name of the selected parameter.
[in]	newWriteConstraintMinimum	New write value constraint minimum value.
[in]	accessPolicyIndex	The index of the selected field access policy.

Returns: True, if successful, false otherwise.

◆ validateItems()

virtual bool FieldInterface::validateItems ( ) const

finaloverridevirtual

Validates the contained items.

Returns: True, if all the ports are valid, false otherwise.

Implements CommonInterface.

The documentation for this class was generated from the following file:

kactus2dev/KactusAPI/include/FieldInterface.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FieldInterface()

◆ ~FieldInterface()

Member Function Documentation

◆ addField() [1/2]

◆ addField() [2/2]

◆ addFieldAccessPolicy()

◆ copyFieldAccessPolicies()

◆ copyRows()

◆ getAccessPolicyCount()

◆ getAccessString()

◆ getAccessType()

◆ getAllReferencesToIdInFieldAccessPolicy()

◆ getAllReferencesToIdInItem()

◆ getExpressionsInSelectedFields()

◆ getID()

◆ getIndexedItemName()

◆ getIsPresentExpression()

◆ getIsPresentFormattedExpression()

◆ getIsPresentValue()

◆ getItemIndex()

◆ getItemNames()

◆ getModeReferenceInterface()

◆ getModeReferences()

◆ getModeReferencesInUse()

◆ getModeRefs()

◆ getModifiedWriteString()

◆ getModifiedWriteValue()

◆ getOffsetExpression()

◆ getOffsetFormattedExpression()

◆ getOffsetValue()

◆ getPasteRowCount()

◆ getReadAction()

◆ getReadActionString()

◆ getReadResponseExpression()

◆ getReadResponseFormattedExpression()

◆ getReadResponseValue()

◆ getReservedExpression()

◆ getReservedFormattedExpression()

◆ getReservedValue()

◆ getResets()

◆ getResetsToolTip()

◆ getSubInterface()

◆ getTestableBool()

◆ getTestableValue()

◆ getTestConstraint()

◆ getTestConstraintString()

◆ getVolatile()

◆ getWidthExpression()

◆ getWidthFormattedExpression()

◆ getWidthValue()

◆ getWriteConstraint()

◆ getWriteConstraintMaximumExpression()

◆ getWriteConstraintMaximumFormattedExpression()

◆ getWriteConstraintMaximumValue()

◆ getWriteConstraintMinimumExpression()

◆ getWriteConstraintMinimumFormattedExpression()

◆ getWriteConstraintMinimumValue()

◆ hasValidAccess()

◆ hasValidAccessPolicyModeRefs()

◆ hasValidIsPresent()

◆ hasValidOffset()

◆ hasValidReadResponse()

◆ hasValidReserved()

◆ hasValidResets()

◆ hasValidWidth()

◆ hasValidWriteValueConstraint()

◆ hasWriteConstraint()

◆ itemCount()

◆ itemHasValidName()

◆ pasteFieldaccessPolicies()

◆ pasteRows()

◆ removeField()

◆ removeFieldAccessPolicy()

◆ setAccess()

◆ setFields()

◆ setID()
