ParameterizableInterface Class Reference

Interface for parameterizable items. More...

#include <ParameterizableInterface.h>

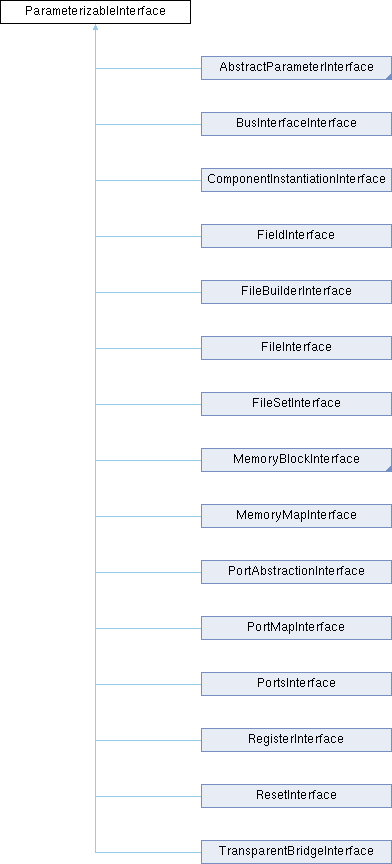

Inheritance diagram for ParameterizableInterface:

Public Member Functions
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.
	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~ParameterizableInterface ()=default
virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const =0
ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete

Protected Member Functions
QString	formattedValueFor (QString const &expression) const
QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const
QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const

Detailed Description

Interface for parameterizable items.

Definition at line 26 of file ParameterizableInterface.h.

Constructor & Destructor Documentation

ParameterizableInterface() [1/2]

ParameterizableInterface::ParameterizableInterface	(	QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter )

The constructor.

Parameters

[in]	expressionParser	Parser for expressions.
[in]	expressionFormatter	Formatter for expressions.

~ParameterizableInterface()

virtual ParameterizableInterface::~ParameterizableInterface ( )

virtualdefault

The destructor.

ParameterizableInterface() [2/2]

ParameterizableInterface::ParameterizableInterface ( const ParameterizableInterface & other )

delete

No copying. No assignment.

Member Function Documentation

formattedValueFor()

QString ParameterizableInterface::formattedValueFor ( QString const & expression ) const

protected

Get the formatted value for the given expression.

Parameters

[in]

expression

The selected expression.

Returns

The formatted expression.

getAllReferencesToIdInItem()

virtual int ParameterizableInterface::getAllReferencesToIdInItem ( const std::string & itemName, std::string const & valueID ) const

pure virtual

Calculate all the references to the selected ID in the selected item.

Parameters

[in]	itemName	Name of the selected item.
[in]	valueID	The selected ID.

Returns

Number of references to the selected ID in the selected item.

Implemented in AbstractParameterInterface, AddressBlockInterface, BusInterfaceInterface, ComponentInstantiationInterface, FieldInterface, FileBuilderInterface, FileInterface, FileSetInterface, MemoryBlockInterface, MemoryMapInterface, PortMapInterface, PortsInterface, RegisterInterface, ResetInterface, and TransparentBridgeInterface.

operator=()

ParameterizableInterface & ParameterizableInterface::operator= ( const ParameterizableInterface & other )

delete

parseExpressionToBaseNumber()

QString ParameterizableInterface::parseExpressionToBaseNumber ( QString const & expression, unsigned int const & baseNumber, bool * expressionIsValid = nullptr ) const

protected

Parse the selected expression to the selected base number.

Parameters

[in]	expression	The selected expression.
[in]	baseNumber	The selected base number.

Returns

The value of the expression in the base number form.

parseExpressionToDecimal()

QString ParameterizableInterface::parseExpressionToDecimal ( QString const & expression, bool * expressionIsValid = nullptr ) const

protected

Parse the selected expression to decimal.

Parameters

[in]

expression

The selected expression.

Returns

The value of the expression in decimal form.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/ParameterizableInterface.h
