BusInterfaceInterface Class Reference

Interface for accessing bus interfaces. More...

#include <BusInterfaceInterface.h>

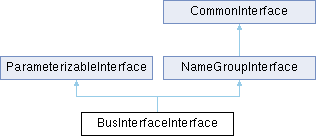

Inheritance diagram for BusInterfaceInterface:

Public Member Functions
	BusInterfaceInterface (const BusInterfaceInterface &other)=delete
	No copying. No assignment.
	BusInterfaceInterface (QSharedPointer< BusInterfaceValidator > busValidator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~BusInterfaceInterface ()=default
bool	addAbstractionType (std::string const &busName, std::string const &newVendor, std::string const &newLibrary, std::string const &newName, std::string const &newVersion) const
void	addBusInterface (int const &newBusIndex, std::string const &busName="")
void	addBusInterface (std::string const &busName="")
bool	busInterfaceExists (std::string const &busName) const
std::string	connectionIsRequired (std::string const &busName) const
void	copyRows (std::vector< int > selectedRows)
QSharedPointer< QList< QSharedPointer< TransparentBridge > > >	createBridges (std::string const &busName)
std::vector< std::string >	getAbstractionReferences (std::string const &busName) const
std::string	getAbstractionReferenceString (std::string const &busName) const
AbstractionTypeInterface *	getAbstractionTypeInterface () const
General::InterfaceMode	getActiveMode (std::string const &busName) const
QString	getActiveSystemGroup (std::string const &busName) const
std::string	getAddressSpaceReference (std::string const &busName) const
std::vector< std::string >	getAllExpressions (std::string const &busName) const
virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const override
std::string	getBaseAddressExpression (std::string const &busName) const
std::string	getBaseAddressFormattedExpression (std::string const &busName) const
std::string	getBaseAddressValue (std::string const &busName, int const &baseNumber=0) const
std::string	getBitsInLau (std::string const &busName) const
std::string	getBitSteering (std::string const &busName) const
TransparentBridgeInterface *	getBridgeInterface ()
QSharedPointer< QList< QSharedPointer< TransparentBridge > > >	getBridges (std::string const &busName) const
ConfigurableVLNVReference	getBusType (std::string const &busName) const
std::string	getBusTypeString (std::string const &busName) const
BusInterface::Endianness	getEndianness (std::string const &busName) const
FileSetInterface *	getFileSetInterface () const
std::vector< std::string >	getFileSetReferences (std::string const &busName) const
std::string	getIndexedItemName (int itemIndex) const final
virtual int	getItemIndex (std::string const &itemName) const override final
virtual std::vector< std::string >	getItemNames () const override final
MemoryMapInterface *	getMemoryMapInterface () const
std::string	getMemoryMapReference (std::string const &busName) const
General::InterfaceMode	getMode (std::string const &busName) const
std::string	getModeString (std::string const &busName) const
std::string	getMonitorGroup (std::string const &busName) const
General::InterfaceMode	getMonitorMode (std::string const &busName) const
int	getPasteRowCount () const
std::string	getRangeExpression (std::string const &busName) const
std::string	getRangeFormattedExpression (std::string const &busName) const
std::string	getRangeValue (std::string const &busName, int const &baseNumber=0) const
std::string	getRemapAddressExpression (std::string const &busName) const
std::string	getRemapAddressFormattedExpression (std::string const &busName) const
std::string	getRemapAddressValue (std::string const &busName, int const &baseNumber=0) const
std::string	getSystemGroup (std::string const &busName) const
QSharedPointer< BusInterfaceValidator >	getValidator () const
bool	hasValidAbstractionTypes (std::string const &busName) const
bool	hasValidBusType (std::string const &busName) const
virtual int	itemCount () const override final
virtual bool	itemHasValidName (std::string const &itemName) const override final
BusInterfaceInterface &	operator= (const BusInterfaceInterface &other)=delete
std::vector< std::string >	pasteRows ()
bool	removeAbstractionTypes (std::string const &busName)
bool	removeBusInterface (std::string const &busName)
void	setAbstractionTypeInterface (AbstractionTypeInterface *newAbstractionTypeInterface)
bool	setAddressSpaceReference (std::string const &busName, std::string const &newSpace)
bool	setBaseAddress (std::string const &busName, std::string const &newBaseAddress)
bool	setBitsInLau (std::string const &busName, std::string const &newBits)
bool	setBitSteering (std::string const &busName, std::string const &newBitSteering)
void	setBusInterfaces (QSharedPointer< Component > newComponent)
bool	setBustype (std::string const &busName, ConfigurableVLNVReference const &newVLNV)
bool	setBustype (std::string const &busName, std::string const &newVendor, std::string const &newLibrary, std::string const &newName, std::string const &newVersion) const
bool	setConnectionIsRequired (std::string const &busName, bool newValue)
bool	setEndianness (std::string const &busName, std::string const &newEndianness)
void	setFileSetInterface (FileSetInterface *newFileSetInterface)
bool	setFileSetReferences (std::string const &busName, std::vector< std::string > const &newFileSetReferences)
void	setMemoryMapInterface (MemoryMapInterface *newMapInterface)
bool	setMemoryMapReference (std::string const &busName, std::string const &newMapReference)
bool	setMode (std::string const &busName, std::string const &newMode)
bool	setMonitorGroup (std::string const &busName, std::string const &newGroup)
bool	setMonitorMode (std::string const &busName, std::string const &newMode)
virtual bool	setName (std::string const &currentName, std::string const &newName) override final
void	setParameterInterface (ParametersInterface *newParameterInterface)
bool	setRange (std::string const &busName, std::string const &newRange)
bool	setRemapAddress (std::string const &busName, std::string const &newRemapAddress)
bool	setSystemGroup (std::string const &busName, std::string const &newSystem)
void	setTransparentBridgeInterface (TransparentBridgeInterface *newBridgeInterface)
void	setupSubInterfaces (std::string const &busName)
void	swapBusInterfaces (int const &firstIndex, int const &secondIndex)
bool	validateBusInterface (std::string const &busName) const
virtual bool	validateItems () const override final
Public Member Functions inherited from ParameterizableInterface
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.
	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~ParameterizableInterface ()=default
ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete
Public Member Functions inherited from NameGroupInterface
	NameGroupInterface ()
	NameGroupInterface (const NameGroupInterface &other)=delete
	No copying. No assignment.
virtual	~NameGroupInterface ()=default
virtual std::string	getDescription (std::string const &itemName) const
virtual std::string	getDisplayName (std::string const &itemName) const
virtual std::string	getShortDescription (std::string const &itemName) const
NameGroupInterface &	operator= (const NameGroupInterface &other)=delete
virtual bool	setDescription (std::string const &itemName, std::string const &newDescription)
virtual bool	setDisplayName (std::string const &itemName, std::string const &newDisplayName) const
bool	setShortDescription (std::string const &itemName, std::string const &newShortDescription) const
Public Member Functions inherited from CommonInterface
	CommonInterface ()=default
	CommonInterface (const CommonInterface &other)=delete
	No copying. No assignment.
virtual	~CommonInterface ()=default
CommonInterface &	operator= (const CommonInterface &other)=delete

Additional Inherited Members
Protected Member Functions inherited from ParameterizableInterface
QString	formattedValueFor (QString const &expression) const
QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const
QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const
Protected Member Functions inherited from CommonInterface
QString	getUniqueName (std::string const &newName, std::string const &itemTypeName) const
bool	nameHasChanged (std::string const &newName, std::string const &oldName) const

Detailed Description

Interface for accessing bus interfaces.

Definition at line 40 of file BusInterfaceInterface.h.

Constructor & Destructor Documentation

BusInterfaceInterface() [1/2]

BusInterfaceInterface::BusInterfaceInterface	(	QSharedPointer< BusInterfaceValidator >	busValidator,
		QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter )

The constructor.

Parameters

[in]	busValidator	Validator for bus interfaces.
[in]	expressionParser	Parser for expressions.
[in]	expressionFormatter	Formatter for expressions.

~BusInterfaceInterface()

virtual BusInterfaceInterface::~BusInterfaceInterface ( )

virtualdefault

The destructor.

BusInterfaceInterface() [2/2]

BusInterfaceInterface::BusInterfaceInterface ( const BusInterfaceInterface & other )

delete

No copying. No assignment.

Member Function Documentation

addAbstractionType()

bool BusInterfaceInterface::addAbstractionType	(	std::string const &	busName,
		std::string const &	newVendor,
		std::string const &	newLibrary,
		std::string const &	newName,
		std::string const &	newVersion ) const

Add a new abstraction type to the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newVendor	Vendor of the new abstraction type.
[in]	newLibrary	Library of the new abstraction type.
[in]	newName	Name of the new abstraction type.
[in]	newVersion	Version of the new abstraction type.

Returns

True, if successful, false otherwise.

addBusInterface() [1/2]

void BusInterfaceInterface::addBusInterface	(	int const &	newBusIndex,
		std::string const &	busName = "" )

Add a new bus interface, insert at specific position given by newBusIndex.

Parameters

[in]	newBusIndex	Index of the new bus interface.
[in]	busName	Name of the new bus interface.

addBusInterface() [2/2]

void BusInterfaceInterface::addBusInterface

(

std::string const &

busName = ""

)

Add a new bus interface. This overload should be preferred when using Python.

Parameters

[in]

busName

Name of the new bus interface.

busInterfaceExists()

bool BusInterfaceInterface::busInterfaceExists

(

std::string const &

busName

)

const

Check if the selected bus interface exists.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

True, if the bus interface exists, false otherwise.

connectionIsRequired()

std::string BusInterfaceInterface::connectionIsRequired

(

std::string const &

busName

)

const

Get the connection required value of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

The connection required value of the selected bus interface.

copyRows()

void BusInterfaceInterface::copyRows

(

std::vector< int >

selectedRows

)

Copy the selected bus interfaces.

Parameters

[in]

selectedRows

Indexes of the selected bus interfaces.

createBridges()

QSharedPointer< QList< QSharedPointer< TransparentBridge > > > BusInterfaceInterface::createBridges

(

std::string const &

busName

)

Create or get existing transparent bridges pointer of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Pointer to the transparent bridges of the selected bus interface.

getAbstractionReferences()

std::vector< std::string > BusInterfaceInterface::getAbstractionReferences

(

std::string const &

busName

)

const

Get the list of abstraction references of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

String list of the abstraction references.

getAbstractionReferenceString()

std::string BusInterfaceInterface::getAbstractionReferenceString

(

std::string const &

busName

)

const

Get the abstraction reference string of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Abstraction reference if only a single abstraction type exists, otherwise [multiple].

getAbstractionTypeInterface()

AbstractionTypeInterface * BusInterfaceInterface::getAbstractionTypeInterface

(

)

const

Get the interface for accessing abstraction types.

Returns

Interface for accessing abstraction types.

getActiveMode()

General::InterfaceMode BusInterfaceInterface::getActiveMode

(

std::string const &

busName

)

const

Get the active / monitored bus interface mode of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Active / monitored bus interface mode of the seleced bus interface.

getActiveSystemGroup()

QString BusInterfaceInterface::getActiveSystemGroup

(

std::string const &

busName

)

const

Get the active / monitored system group of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Active / monitored system group of the seleced bus interface.

getAddressSpaceReference()

std::string BusInterfaceInterface::getAddressSpaceReference

(

std::string const &

busName

)

const

Get the address space reference of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Address space reference of the selected bus interface.

getAllExpressions()

std::vector< std::string > BusInterfaceInterface::getAllExpressions

(

std::string const &

busName

)

const

Get all the expressions in the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

List of the expressions in the selected bus interface.

getAllReferencesToIdInItem()

virtual int BusInterfaceInterface::getAllReferencesToIdInItem ( const std::string & itemName, std::string const & valueID ) const

overridevirtual

Get all the references made to the selected parameter in the selected bus interface.

Parameters

[in]	itemName	Name of the selected bus interface.
[in]	valueID	ID of the target parameter.

Returns

Number of references made to the given parameter in the selected bus interface.

Implements ParameterizableInterface.

getBaseAddressExpression()

std::string BusInterfaceInterface::getBaseAddressExpression

(

std::string const &

busName

)

const

Get the base address expression of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Base address expression of the selected bus interface.

getBaseAddressFormattedExpression()

std::string BusInterfaceInterface::getBaseAddressFormattedExpression

(

std::string const &

busName

)

const

Get the formatted base address expression of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Formatted base address expression of the selected bus interface.

getBaseAddressValue()

std::string BusInterfaceInterface::getBaseAddressValue	(	std::string const &	busName,
		int const &	baseNumber = 0 ) const

Get the calculated base address value of the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated base address value of the selected bus interface.

getBitsInLau()

std::string BusInterfaceInterface::getBitsInLau

(

std::string const &

busName

)

const

Get the bits in lau value of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Bits in lau value of the selected bus interface.

getBitSteering()

std::string BusInterfaceInterface::getBitSteering

(

std::string const &

busName

)

const

Get the bit steering value of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

The bit steering of the selected bus interface.

getBridgeInterface()

TransparentBridgeInterface * BusInterfaceInterface::getBridgeInterface

(

)

Get the interface for accessing transparent bridges.

Returns

Interface for accessing transparent bridges.

getBridges()

QSharedPointer< QList< QSharedPointer< TransparentBridge > > > BusInterfaceInterface::getBridges

(

std::string const &

busName

)

const

Get the transparent bridges of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Transparent bridges of the selected bus interface.

getBusType()

ConfigurableVLNVReference BusInterfaceInterface::getBusType

(

std::string const &

busName

)

const

Get the bus type of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Bus type of the selected bus interface.

getBusTypeString()

std::string BusInterfaceInterface::getBusTypeString

(

std::string const &

busName

)

const

Get the bus type of the selected bus interface as a string.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Bus type of the selected bus interface in string format.

getEndianness()

BusInterface::Endianness BusInterfaceInterface::getEndianness

(

std::string const &

busName

)

const

Get the endianness of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

BIG, LITTLE or UNSPECIFIED.

getFileSetInterface()

FileSetInterface * BusInterfaceInterface::getFileSetInterface

(

)

const

Get the interface for accessing file sets.

Returns

Interface for accessing file sets.

getFileSetReferences()

std::vector< std::string > BusInterfaceInterface::getFileSetReferences

(

std::string const &

busName

)

const

Get the file set references of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

File set references of the selected bus interface.

getIndexedItemName()

std::string BusInterfaceInterface::getIndexedItemName ( int itemIndex ) const

finalvirtual

Get name of the indexed bus interface.

Parameters

[in]

itemIndex

Index of the selected bus interface.

Returns

Name of the selected bus interface.

Implements NameGroupInterface.

getItemIndex()

virtual int BusInterfaceInterface::getItemIndex ( std::string const & itemName ) const

finaloverridevirtual

Get index of the selected bus interface.

Parameters

[in]

itemName

Name of the selected bus interface.

Returns

Index of the selected bus interface.

Implements NameGroupInterface.

getItemNames()

virtual std::vector< std::string > BusInterfaceInterface::getItemNames ( ) const

finaloverridevirtual

Get the names of the available bus interfaces.

Returns

Names of the available bus interfaces.

Implements CommonInterface.

getMemoryMapInterface()

MemoryMapInterface * BusInterfaceInterface::getMemoryMapInterface

(

)

const

Get the interface for accessing memory maps.

Returns

Interface for accessing memory maps.

getMemoryMapReference()

std::string BusInterfaceInterface::getMemoryMapReference

(

std::string const &

busName

)

const

Get the memory map reference of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Memory map reference of the selected bus interface.

getMode()

General::InterfaceMode BusInterfaceInterface::getMode

(

std::string const &

busName

)

const

Get the interface mode of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Interface mode of the selected bus interface.

getModeString()

std::string BusInterfaceInterface::getModeString

(

std::string const &

busName

)

const

Get the interface mode of the selected bus interface in string form.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Interface mode string of the selected bus interface.

getMonitorGroup()

std::string BusInterfaceInterface::getMonitorGroup

(

std::string const &

busName

)

const

Get the monitor system group of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Monitor system group of the selected bus interface.

getMonitorMode()

General::InterfaceMode BusInterfaceInterface::getMonitorMode

(

std::string const &

busName

)

const

Get the monitor interface mode of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Monitor interface mode of the selected bus interface.

getPasteRowCount()

int BusInterfaceInterface::getPasteRowCount

(

)

const

Get the number of pasted bus interfaces.

Returns

Number of the pasted bus interfaces.

getRangeExpression()

std::string BusInterfaceInterface::getRangeExpression

(

std::string const &

busName

)

const

Get the range expression of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Range expression of the selected bus interface.

getRangeFormattedExpression()

std::string BusInterfaceInterface::getRangeFormattedExpression

(

std::string const &

busName

)

const

Get the formatted range expression of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Formatted range expression of the selected bus interface.

getRangeValue()

std::string BusInterfaceInterface::getRangeValue	(	std::string const &	busName,
		int const &	baseNumber = 0 ) const

Get the calculated range value of the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated range value of the selected bus interface.

getRemapAddressExpression()

std::string BusInterfaceInterface::getRemapAddressExpression

(

std::string const &

busName

)

const

Get the remap address expression of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Remap address expression of the selected bus interface.

getRemapAddressFormattedExpression()

std::string BusInterfaceInterface::getRemapAddressFormattedExpression

(

std::string const &

busName

)

const

Get the formatted remap address expression of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

Formatted remap address expression of the selected bus interface.

getRemapAddressValue()

std::string BusInterfaceInterface::getRemapAddressValue	(	std::string const &	busName,
		int const &	baseNumber = 0 ) const

Get the calculated remap address value of the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated remap address value of the selected bus interface.

getSystemGroup()

std::string BusInterfaceInterface::getSystemGroup

(

std::string const &

busName

)

const

Get the system group of the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

System group of the selected bus interface.

getValidator()

QSharedPointer< BusInterfaceValidator > BusInterfaceInterface::getValidator

(

)

const

Get the validator for bus interfaces.

Returns

Validator for bus interfaces.

hasValidAbstractionTypes()

bool BusInterfaceInterface::hasValidAbstractionTypes

(

std::string const &

busName

)

const

Check if the selected bus interface has valid abstraction types.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

True, if the abstraction types is valid, false otherwise.

hasValidBusType()

bool BusInterfaceInterface::hasValidBusType

(

std::string const &

busName

)

const

Check if the selected bus interface has a valid bus type.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

True, if the bus type is valid, false otherwise.

itemCount()

virtual int BusInterfaceInterface::itemCount ( ) const

finaloverridevirtual

Get the number of available bus interfaces.

Returns

Number of available bus interfaces.

Implements CommonInterface.

itemHasValidName()

virtual bool BusInterfaceInterface::itemHasValidName ( std::string const & itemName ) const

finaloverridevirtual

Check if the selected bus interface has a valid name.

Parameters

[in]

itemName

Name of the selected bus interface.

Returns

True, if the name is valid, false otherwise.

Implements NameGroupInterface.

operator=()

BusInterfaceInterface & BusInterfaceInterface::operator= ( const BusInterfaceInterface & other )

delete

pasteRows()

std::vector< std::string > BusInterfaceInterface::pasteRows

(

)

Paste the selected bus interfaces.

Returns

Names of the pasted bus interfaces.

removeAbstractionTypes()

bool BusInterfaceInterface::removeAbstractionTypes

(

std::string const &

busName

)

Remove all the abstraction types from the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

True, if successfull, false otherwise.

removeBusInterface()

bool BusInterfaceInterface::removeBusInterface

(

std::string const &

busName

)

Remove the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

True, if successful, false otherwise.

setAbstractionTypeInterface()

void BusInterfaceInterface::setAbstractionTypeInterface

(

AbstractionTypeInterface *

newAbstractionTypeInterface

)

Set a new abstraction type interface.

Parameters

[in]

newAbstractionTypeInterface

The new abstraction type interface.

setAddressSpaceReference()

bool BusInterfaceInterface::setAddressSpaceReference	(	std::string const &	busName,
		std::string const &	newSpace )

Set a new address space reference for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newSpace	New address space reference.

Returns

True, if successful, false otherwise.

setBaseAddress()

bool BusInterfaceInterface::setBaseAddress	(	std::string const &	busName,
		std::string const &	newBaseAddress )

Set the base address for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newBaseAddress	New base address.

Returns

True, if successful, false otherwise.

setBitsInLau()

bool BusInterfaceInterface::setBitsInLau	(	std::string const &	busName,
		std::string const &	newBits )

Set the bits in value for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newBits	New bits in lau value.

Returns

True, if successful, false otherwise.

setBitSteering()

bool BusInterfaceInterface::setBitSteering	(	std::string const &	busName,
		std::string const &	newBitSteering )

Set the bit steering value for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newBitSteering	New bit steering value.

Returns

True, if successful, false otherwise.

setBusInterfaces()

void BusInterfaceInterface::setBusInterfaces

(

QSharedPointer< Component >

newComponent

)

Setup the bus interfaces.

Parameters

[in]

newComponent

Component containing the bus interfaces.

setBustype() [1/2]

bool BusInterfaceInterface::setBustype	(	std::string const &	busName,
		ConfigurableVLNVReference const &	newVLNV )

Set the bus type of the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newVLNV	New bus type VLNV.

Returns

True, if successful, false otherwise.

setBustype() [2/2]

bool BusInterfaceInterface::setBustype	(	std::string const &	busName,
		std::string const &	newVendor,
		std::string const &	newLibrary,
		std::string const &	newName,
		std::string const &	newVersion ) const

Set the bus type for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newVendor	Vendor of the new bus type.
[in]	newLibrary	Library of the new bus type.
[in]	newName	Name of the new bus type.
[in]	newVersion	Version of the new bus type.

Returns

True, if successful, false otherwise.

setConnectionIsRequired()

bool BusInterfaceInterface::setConnectionIsRequired	(	std::string const &	busName,
		bool	newValue )

Set the connection required value for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newValue	New connection required value.

Returns

True, if successful, false otherwise.

setEndianness()

bool BusInterfaceInterface::setEndianness	(	std::string const &	busName,
		std::string const &	newEndianness )

Set the endianness of the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newEndianness	New endianness value.

Returns

True, if successful, false otherwise.

setFileSetInterface()

void BusInterfaceInterface::setFileSetInterface

(

FileSetInterface *

newFileSetInterface

)

Set a new file set interface.

Parameters

[in]

newFileSetInterface

The new file set interface.

setFileSetReferences()

bool BusInterfaceInterface::setFileSetReferences	(	std::string const &	busName,
		std::vector< std::string > const &	newFileSetReferences )

Set the file set references for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newFileSetReferences	New file set references.

Returns

True, if successful, false otherwise.

setMemoryMapInterface()

void BusInterfaceInterface::setMemoryMapInterface

(

MemoryMapInterface *

newMapInterface

)

Set a new memory map interface.

Parameters

[in]

newMapInterface

The new memory map interface.

setMemoryMapReference()

bool BusInterfaceInterface::setMemoryMapReference	(	std::string const &	busName,
		std::string const &	newMapReference )

Set a new memory map reference for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newMapReference	New memory map reference.

Returns

True, if successful, false otherwise.

setMode()

bool BusInterfaceInterface::setMode	(	std::string const &	busName,
		std::string const &	newMode )

Set the interface mode for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newMode	The new interface mode.

Returns

True, if successful, false otherwise.

setMonitorGroup()

bool BusInterfaceInterface::setMonitorGroup	(	std::string const &	busName,
		std::string const &	newGroup )

Set the monitor system group for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newGroup	New monitor system group.

Returns

True, if successful, false otherwise.

setMonitorMode()

bool BusInterfaceInterface::setMonitorMode	(	std::string const &	busName,
		std::string const &	newMode )

Set the monitor interface mode for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newMode	New monitor interface mode.

Returns

True, if successful, false otherwise.

setName()

virtual bool BusInterfaceInterface::setName ( std::string const & currentName, std::string const & newName )

finaloverridevirtual

Set a new name for the selected bus interface.

Parameters

[in]	currentName	Name of the selected bus interface.
[in]	newName	New name for the bus interface.

Returns

True, if successful, false otherwise.

Implements NameGroupInterface.

setParameterInterface()

void BusInterfaceInterface::setParameterInterface

(

ParametersInterface *

newParameterInterface

)

Set a new parameter interface.

Parameters

[in]

newParameterInterface

The new parameter interface.

setRange()

bool BusInterfaceInterface::setRange	(	std::string const &	busName,
		std::string const &	newRange )

Set the range for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newRange	New range value.

Returns

True, if successful, false otherwise.

setRemapAddress()

bool BusInterfaceInterface::setRemapAddress	(	std::string const &	busName,
		std::string const &	newRemapAddress )

Set the remap address for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newRemapAddress	New remap address value.

Returns

True, if successful, false otherwise.

setSystemGroup()

bool BusInterfaceInterface::setSystemGroup	(	std::string const &	busName,
		std::string const &	newSystem )

Set the system group for the selected bus interface.

Parameters

[in]	busName	Name of the selected bus interface.
[in]	newSystem	The new system group.

Returns

True, if successful, false otherwise.

setTransparentBridgeInterface()

void BusInterfaceInterface::setTransparentBridgeInterface

(

TransparentBridgeInterface *

newBridgeInterface

)

Set a new transparent bridge interface.

Parameters

[in]

newBridgeInterface

The new transparent bridge interface.

setupSubInterfaces()

void BusInterfaceInterface::setupSubInterfaces

(

std::string const &

busName

)

Setup the sub interfaces for the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

swapBusInterfaces()

void BusInterfaceInterface::swapBusInterfaces	(	int const &	firstIndex,
		int const &	secondIndex )

Swap the selected bus interfaces.

Parameters

[in]	firstIndex	Index of the first bus interface.
[in]	secondIndex	Index of the second bus interface.

validateBusInterface()

bool BusInterfaceInterface::validateBusInterface

(

std::string const &

busName

)

const

Validate the selected bus interface.

Parameters

[in]

busName

Name of the selected bus interface.

Returns

True, if the bus interface is valid, false otherwise.

validateItems()

virtual bool BusInterfaceInterface::validateItems ( ) const

finaloverridevirtual

Validates the contained bus interfaces.

Returns

True, if all the bus interfaces are valid, false otherwise.

Implements CommonInterface.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/BusInterfaceInterface.h
