MemoryMapInterface Class Reference

Interface for editing memory maps and remaps. More...

#include <MemoryMapInterface.h>

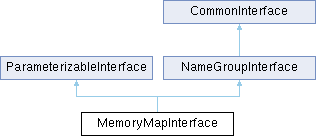

Inheritance diagram for MemoryMapInterface:

Public Member Functions
	MemoryMapInterface (QSharedPointer< MemoryMapValidator > mapValidator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~MemoryMapInterface ()=default
void	addMemoryMap (int const &row, std::string const &newMapName=std::string(""))
void	addMemoryMap (std::string const &newMapName=std::string(""))
void	addMemoryRemap (std::string const &mapName, std::string const &newRemapName=std::string(""))
bool	addRemapModeReference (std::string const &mapName, std::string const &remapName)
void	copyRows (std::vector< std::string > const &selectedRows)
AddressBlockInterface *	getAddressBlockInterface () const
std::string	getAddressUnitBitsExpression (std::string const &mapName) const
std::string	getAddressUnitBitsFormattedExpression (std::string const &mapName) const
std::string	getAddressUnitBitsValue (std::string const &mapName, int const &baseNumber=0) const
virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const override final
int	getAllReferencesToIdInRemapItem (std::string const &mapName, std::string const &remapName, std::string const &valueID) const
std::vector< std::string >	getAssociatedSlaveInterfaces (std::string const &mapName) const
std::string	getIndexedItemName (int itemIndex) const final
std::string	getIndexedRemapName (std::string mapName, int const &itemIndex) const
std::string	getInterfaceBinding (std::string const &mapName) const
std::string	getIsPresentExpression (std::string const &mapName, std::string const &remapName="") const
std::string	getIsPresentFormattedExpression (std::string const &mapName, std::string const &remapName="") const
std::string	getIsPresentValue (std::string const &mapName, std::string const &remapName="", int const &baseNumber=0) const
virtual int	getItemIndex (std::string const &itemName) const override final
virtual std::vector< std::string >	getItemNames () const override final
std::vector< std::string >	getMapExpressions (std::string const &mapName, std::string const &remapName) const
MemoryMap *	getMapPointer (std::string const &mapName) const
int	getMemoryRemapIndex (std::string const &mapName, std::string const &remapName) const
ModeReferenceInterface *	getModeReferenceInterface () const
std::string	getRemapDescription (std::string const &mapName, std::string const &remapName) const
int	getRemapModeReferenceCount (std::string const &mapName, std::string const &remapName) const
std::vector< std::pair< unsigned int, std::string > >	getRemapModeReferences (std::string const &mapName, std::string const &remapName) const
std::vector< std::pair< unsigned int, std::string > >	getRemapModeReferencesExcludingRemap (std::string const &mapName, std::string const &remapName) const
std::string	getRemapModeReferenceString (std::string const &mapName, std::string const &remapName) const
std::vector< std::string >	getRemapNames (std::string const &mapName) const
MemoryRemap *	getRemapPointer (std::string const &mapName, std::string const &remapName) const
std::string	getRemapState (std::string const &mapName, std::string const &remapName="") const
SubspaceMapInterface *	getSubspaceMapInterface () const
virtual int	itemCount () const override final
bool	itemHasValidIsPresent (std::string const &mapName, std::string const &remapName="") const
virtual bool	itemHasValidName (std::string const &itemName) const override final
bool	memoryMapHasValidAddressUnitBits (std::string const &mapName) const
std::vector< std::string >	pasteMemoryMaps ()
std::vector< std::string >	pasteMemoryRemaps (std::string const &memoryMapName)
int	remapCount (std::string const &mapName) const
bool	remapHasValidName (std::string const &mapName, std::string const &itemName) const
bool	remapHasValidRemapState (std::string const &mapName, std::string const &itemName) const
bool	removeMap (std::string const &mapName)
bool	removeRemap (std::string const &mapName, std::string remapName)
bool	removeRemapModeReference (std::string const &mapName, std::string const &remapName, int modeReferenceIndex)
void	setAddressBlockInterface (AddressBlockInterface *blockInterface)
bool	setAddressUnitBits (std::string const &mapName, std::string const &newAddressUnitBits) const
bool	setIsPresent (std::string const &mapName, std::string const &newIsPresent, std::string const &remapName="")
void	setMemoryMaps (QSharedPointer< Component > component)
void	setModeReferenceInterface (ModeReferenceInterface *modeRefInterface)
virtual bool	setName (std::string const &currentName, std::string const &newName) override final
bool	setRemapDescription (std::string const &mapName, std::string const &itemName, std::string const &newDescription)
bool	setRemapModeReferences (std::string const &mapName, std::string const &remapName, std::vector< std::pair< unsigned int, std::string > > const &newModeRefs)
bool	setRemapName (std::string const &mapName, std::string const &currentName, std::string const &newName)
bool	setRemapState (std::string const &mapName, std::string const &remapName, std::string const &newRemapState)
void	setSubspaceMapInterface (SubspaceMapInterface *submapInterface)
virtual bool	validateItems () const override final
Public Member Functions inherited from ParameterizableInterface
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.
	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~ParameterizableInterface ()=default
ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete
Public Member Functions inherited from NameGroupInterface
	NameGroupInterface ()
	NameGroupInterface (const NameGroupInterface &other)=delete
	No copying. No assignment.
virtual	~NameGroupInterface ()=default
virtual std::string	getDescription (std::string const &itemName) const
virtual std::string	getDisplayName (std::string const &itemName) const
virtual std::string	getShortDescription (std::string const &itemName) const
NameGroupInterface &	operator= (const NameGroupInterface &other)=delete
virtual bool	setDescription (std::string const &itemName, std::string const &newDescription)
virtual bool	setDisplayName (std::string const &itemName, std::string const &newDisplayName) const
bool	setShortDescription (std::string const &itemName, std::string const &newShortDescription) const
Public Member Functions inherited from CommonInterface
	CommonInterface ()=default
	CommonInterface (const CommonInterface &other)=delete
	No copying. No assignment.
virtual	~CommonInterface ()=default
CommonInterface &	operator= (const CommonInterface &other)=delete

Additional Inherited Members
Protected Member Functions inherited from ParameterizableInterface
QString	formattedValueFor (QString const &expression) const
QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const
QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const
Protected Member Functions inherited from CommonInterface
QString	getUniqueName (std::string const &newName, std::string const &itemTypeName) const
bool	nameHasChanged (std::string const &newName, std::string const &oldName) const

Detailed Description

Interface for editing memory maps and remaps.

Definition at line 33 of file MemoryMapInterface.h.

Constructor & Destructor Documentation

MemoryMapInterface()

MemoryMapInterface::MemoryMapInterface	(	QSharedPointer< MemoryMapValidator >	mapValidator,
		QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter )

The constructor.

Parameters

[in]	mapValidator	Validator for memory maps.
[in]	expressionParser	Parser for expressions.
[in]	expressionFormatter	Formatter for expressions.

~MemoryMapInterface()

virtual MemoryMapInterface::~MemoryMapInterface ( )

virtualdefault

The destructor.

Member Function Documentation

addMemoryMap() [1/2]

void MemoryMapInterface::addMemoryMap	(	int const &	row,
		std::string const &	newMapName = std::string("") )

Add a new memory map, inserting it to specific position given by row.

Parameters

[in]	row	Row of the new memory map.
[in]	newMapName	Name of the new memory map.

addMemoryMap() [2/2]

void MemoryMapInterface::addMemoryMap

(

std::string const &

newMapName = std::string("")

)

Add a new memory map. This overload should be preferred when using Python.

Parameters

[in]

newMapName

Name of the new memory map.

addMemoryRemap()

void MemoryMapInterface::addMemoryRemap	(	std::string const &	mapName,
		std::string const &	newRemapName = std::string("") )

Add a new memory remap.

Parameters

[in]	mapName	Name of the memory map containing the new memory remap.
[in]	newRemapName	Name of the new memory map.

addRemapModeReference()

bool MemoryMapInterface::addRemapModeReference	(	std::string const &	mapName,
		std::string const &	remapName )

Add a new mode reference to a selected remap.

Parameters

[in]	mapName	The containing memory map.
[in]	remapName	The name of the remap to add a mode reference to.

Returns

True, if the operation was successful, otherwise false.

copyRows()

void MemoryMapInterface::copyRows

(

std::vector< std::string > const &

selectedRows

)

Copy the selected items.

Parameters

[in]

selectedRows

Indexes of the selected items.

getAddressBlockInterface()

AddressBlockInterface * MemoryMapInterface::getAddressBlockInterface

(

)

const

Get the address block interface.

Returns

Interface for accessing address blocks.

getAddressUnitBitsExpression()

std::string MemoryMapInterface::getAddressUnitBitsExpression

(

std::string const &

mapName

)

const

Get the address unit bits expression of the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Address unit bits expression of the selected memory map.

getAddressUnitBitsFormattedExpression()

std::string MemoryMapInterface::getAddressUnitBitsFormattedExpression

(

std::string const &

mapName

)

const

Get the formatted address unit bits expression of the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Formatted address unit bits expression of the selected memory map.

getAddressUnitBitsValue()

std::string MemoryMapInterface::getAddressUnitBitsValue	(	std::string const &	mapName,
		int const &	baseNumber = 0 ) const

Get the address unit bits value of the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Address unit bits of the selected memory map.

getAllReferencesToIdInItem()

virtual int MemoryMapInterface::getAllReferencesToIdInItem ( const std::string & itemName, std::string const & valueID ) const

finaloverridevirtual

Calculate all the references to the selected ID in the selected item.

Parameters

[in]	itemName	Name of the selected item.
[in]	valueID	The selected ID.

Returns

Number of references to the selected ID in the selected item.

Implements ParameterizableInterface.

getAllReferencesToIdInRemapItem()

int MemoryMapInterface::getAllReferencesToIdInRemapItem	(	std::string const &	mapName,
		std::string const &	remapName,
		std::string const &	valueID ) const

Get the number of references made to the selected parameter in the selected memory remap.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.
[in]	valueID	ID of the selected parameter.

Returns

The number of references made to the selected parameter in the selected memory remap.

getAssociatedSlaveInterfaces()

std::vector< std::string > MemoryMapInterface::getAssociatedSlaveInterfaces

(

std::string const &

mapName

)

const

Get the associated slave interface of the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

The associated slave interfaces of the selected memory map.

getIndexedItemName()

std::string MemoryMapInterface::getIndexedItemName ( int itemIndex ) const

finalvirtual

Get name of the indexed memory map.

Parameters

[in]

itemIndex

Index of the selected memory map.

Returns

Name of the selected memory map.

Implements NameGroupInterface.

getIndexedRemapName()

std::string MemoryMapInterface::getIndexedRemapName	(	std::string	mapName,
		int const &	itemIndex ) const

getInterfaceBinding()

std::string MemoryMapInterface::getInterfaceBinding

(

std::string const &

mapName

)

const

Get the slave interface binding of the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Slave interface binding of the selected memory map.

getIsPresentExpression()

std::string MemoryMapInterface::getIsPresentExpression	(	std::string const &	mapName,
		std::string const &	remapName = "" ) const

Get the is present expression of the selected item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.

Returns

Is present expression of the selected item.

getIsPresentFormattedExpression()

std::string MemoryMapInterface::getIsPresentFormattedExpression	(	std::string const &	mapName,
		std::string const &	remapName = "" ) const

Get the formatted is present expression of the selected item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.

Returns

Formatted is present expression of the selected item.

getIsPresentValue()

std::string MemoryMapInterface::getIsPresentValue	(	std::string const &	mapName,
		std::string const &	remapName = "",
		int const &	baseNumber = 0 ) const

Get the calculated is present value of the selected item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated is present value of the selected item.

getItemIndex()

virtual int MemoryMapInterface::getItemIndex ( std::string const & itemName ) const

finaloverridevirtual

Get index of the selected memory map.

Parameters

[in]

itemName

Name of the selected item.

Returns

Index of the selected item.

Implements NameGroupInterface.

getItemNames()

virtual std::vector< std::string > MemoryMapInterface::getItemNames ( ) const

finaloverridevirtual

Get the names of the available items.

Returns

Names of the available items.

Implements CommonInterface.

getMapExpressions()

std::vector< std::string > MemoryMapInterface::getMapExpressions	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get the expressions in the selected memory item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.

Returns

List of expressions in the selected memory item.

getMapPointer()

MemoryMap * MemoryMapInterface::getMapPointer

(

std::string const &

mapName

)

const

Get a pointer to the selected memory map (for index construction).

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Pointer to the selected memory map.

getMemoryRemapIndex()

int MemoryMapInterface::getMemoryRemapIndex	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get index of the selected memory remap.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	remapName	Name of the selected memory remap.

Returns

Index of the selected memory remap.

getModeReferenceInterface()

ModeReferenceInterface * MemoryMapInterface::getModeReferenceInterface

(

)

const

Get the mode reference interface used for accessing remap mode references.

@return  The mode reference interface.

getRemapDescription()

std::string MemoryMapInterface::getRemapDescription	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get the description of the selected memory remap.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	remapName	Name of the selected memory remap.

Returns

Description of the selected memory remap.

getRemapModeReferenceCount()

int MemoryMapInterface::getRemapModeReferenceCount	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get the number of mode references for a selected remap.

Parameters

[in]	mapName	Memory map containing the remap.
[in]	remapName	The name of the remap.

Returns

The number of mode references within the remap.

getRemapModeReferences()

std::vector< std::pair< unsigned int, std::string > > MemoryMapInterface::getRemapModeReferences	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get the mode references of a selected remap.

Parameters

[in]	mapName	The containing memory map.
[in]	remapName	The name of the remap.

Returns

The mode references of selected remap.

getRemapModeReferencesExcludingRemap()

std::vector< std::pair< unsigned int, std::string > > MemoryMapInterface::getRemapModeReferencesExcludingRemap	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get the mode references of all remaps in memory map (excluding selected remap) as a list of priority, reference pairs.

Parameters

[in]	mapName	The containing memory map.
[in]	remapName	The name of the remap to exclude from the mode ref list.

Returns

The mode references of remaps in memory map, excluding selected remap.

getRemapModeReferenceString()

std::string MemoryMapInterface::getRemapModeReferenceString	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get string to display in mode references editor, depending on if remap has no mode references, one mode reference or multiple mode references. Returns an empty string if remap is not found.

Parameters

[in]	mapName	The containing memory map.
[in]	remapName	The name of the remap.

Returns

Empty string if remap is not found, or "None", "<mode>" or "[multiple]" depending on mode references of the remap.

getRemapNames()

std::vector< std::string > MemoryMapInterface::getRemapNames

(

std::string const &

mapName

)

const

Get the names of available memory remaps in the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Names of the available memory remaps in the selected memory map.

getRemapPointer()

MemoryRemap * MemoryMapInterface::getRemapPointer	(	std::string const &	mapName,
		std::string const &	remapName ) const

Get a pointer to the selected memory remap (for index construction).

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	remapName	Name of the selected memory remap.

Returns

Pointer to the selected memory remap.

getRemapState()

std::string MemoryMapInterface::getRemapState	(	std::string const &	mapName,
		std::string const &	remapName = "" ) const

Get the remap state of the selected item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.

Returns

Remap state of the selected item.

getSubspaceMapInterface()

SubspaceMapInterface * MemoryMapInterface::getSubspaceMapInterface

(

)

const

Get the subspace map interface.

Returns

Interface for accessing subspace maps.

itemCount()

virtual int MemoryMapInterface::itemCount ( ) const

finaloverridevirtual

Get the number of available items.

Returns

Number of available items.

Implements CommonInterface.

itemHasValidIsPresent()

bool MemoryMapInterface::itemHasValidIsPresent	(	std::string const &	mapName,
		std::string const &	remapName = "" ) const

Check if the selected memory item has a valid is present.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	remapName	Name of the selected memory remap.

Returns

True, if the is present is valid, false otherwise.

itemHasValidName()

virtual bool MemoryMapInterface::itemHasValidName ( std::string const & itemName ) const

finaloverridevirtual

Check if the selected item has a valid name.

Parameters

[in]

itemName

Name of the selected item.

Returns

True, if the name is valid, false otherwise.

Implements NameGroupInterface.

memoryMapHasValidAddressUnitBits()

bool MemoryMapInterface::memoryMapHasValidAddressUnitBits

(

std::string const &

mapName

)

const

Check if the selected memory map has a valid address unit bits value.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

True, if the address unit bits value is valid, false otherwise.

pasteMemoryMaps()

std::vector< std::string > MemoryMapInterface::pasteMemoryMaps

(

)

Paste the selected memory maps.

Returns

Names of the pasted items.

pasteMemoryRemaps()

std::vector< std::string > MemoryMapInterface::pasteMemoryRemaps

(

std::string const &

memoryMapName

)

Paste the selected memory remaps.

Parameters

[in]

memoryMapName

Name of the memory map containing the pasted memory remaps.

Returns

Names of the pasted items.

remapCount()

int MemoryMapInterface::remapCount

(

std::string const &

mapName

)

const

Get the number of available memory remaps in the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

Number of available memory remaps in the selected memory map.

remapHasValidName()

bool MemoryMapInterface::remapHasValidName	(	std::string const &	mapName,
		std::string const &	itemName ) const

Check if the selected memory remap has a valid name.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	itemName	Name of the selected memory remap.

Returns

True, if the name is valid, false otherwise.

remapHasValidRemapState()

bool MemoryMapInterface::remapHasValidRemapState	(	std::string const &	mapName,
		std::string const &	itemName ) const

Check if the selected memory remap has a valid remap state.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	itemName	Name of the selected memory remap.

Returns

True, if the remap state is valid, false otherwise.

removeMap()

bool MemoryMapInterface::removeMap

(

std::string const &

mapName

)

Remove the selected memory map.

Parameters

[in]

mapName

Name of the selected memory map.

Returns

True, if successful, false otherwise.

removeRemap()

bool MemoryMapInterface::removeRemap	(	std::string const &	mapName,
		std::string	remapName )

Remove the selected memory remap.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	remapName	Name of the selected memory remap.

Returns

True, if successful, false otherwise.

removeRemapModeReference()

bool MemoryMapInterface::removeRemapModeReference	(	std::string const &	mapName,
		std::string const &	remapName,
		int	modeReferenceIndex )

Remove a selected mode reference of a given remap.

Parameters

[in]	mapName	The containing memory map.
[in]	remapName	The name of the remap to remove a mode reference of.
[in]	modeReferenceIndex	The index of the mode reference to be removed.

Returns

True, if the operation was successful, otherwise false.

setAddressBlockInterface()

void MemoryMapInterface::setAddressBlockInterface

(

AddressBlockInterface *

blockInterface

)

Set a new address block interface.

Parameters

[in]

blockInterface

The new address block interface.

setAddressUnitBits()

bool MemoryMapInterface::setAddressUnitBits	(	std::string const &	mapName,
		std::string const &	newAddressUnitBits ) const

Set the address unit bits for the selected memory map.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	newAddressUnitBits	New address unit bits.

Returns

True, if successful, false otherwise.

setIsPresent()

bool MemoryMapInterface::setIsPresent	(	std::string const &	mapName,
		std::string const &	newIsPresent,
		std::string const &	remapName = "" )

Set a new is present value for the selected item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.
[in]	newIsPresent	New is present value.

Returns

True, if successful, false otherwise.

setMemoryMaps()

void MemoryMapInterface::setMemoryMaps

(

QSharedPointer< Component >

component

)

Set available memory maps.

Parameters

[in]

component

Component containing the memory maps.

setModeReferenceInterface()

void MemoryMapInterface::setModeReferenceInterface

(

ModeReferenceInterface *

modeRefInterface

)

Set the mode reference interface used for accessing remap mode references.

Parameters

[in]

modeRefInterface

Description

setName()

virtual bool MemoryMapInterface::setName ( std::string const & currentName, std::string const & newName )

finaloverridevirtual

Set a new name for the selected item.

Parameters

[in]	currentName	Name of the selected item.
[in]	newName	New name for the item.

Returns

True, if successful, false otherwise.

Implements NameGroupInterface.

setRemapDescription()

bool MemoryMapInterface::setRemapDescription	(	std::string const &	mapName,
		std::string const &	itemName,
		std::string const &	newDescription )

Set a new description for the selected memory remap.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	itemName	Name of the selected memory remap.
[in]	newDescription	New description.

Returns

True, if successful, false otherwise.

setRemapModeReferences()

bool MemoryMapInterface::setRemapModeReferences	(	std::string const &	mapName,
		std::string const &	remapName,
		std::vector< std::pair< unsigned int, std::string > > const &	newModeRefs )

Set the mode references of given remap.

Parameters

[in]	mapName	The containing memory map.
[in]	remapName	The name of the remap whose mode references are set.
[in]	newModeRefs	The mode references to set.

Returns

True, if the operation was successful, otherwise false.

setRemapName()

bool MemoryMapInterface::setRemapName	(	std::string const &	mapName,
		std::string const &	currentName,
		std::string const &	newName )

Set a new name for the selected memory remap.

Parameters

[in]	mapName	Name of the memory map containing the selected memory remap.
[in]	currentName	Name of the selected memory remap.
[in]	newName	New name for the memory remap.

Returns

True, if successful, false otherwise.

setRemapState()

bool MemoryMapInterface::setRemapState	(	std::string const &	mapName,
		std::string const &	remapName,
		std::string const &	newRemapState )

Set the remap state for the selected item.

Parameters

[in]	mapName	Name of the selected memory map.
[in]	remapName	Name of the selected memory remap.
[in]	newRemapState	New remap state.

Returns

True, if successful, false otherwise.

setSubspaceMapInterface()

void MemoryMapInterface::setSubspaceMapInterface

(

SubspaceMapInterface *

submapInterface

)

Set a new subspace map interface.

Parameters

[in]

submapInterface

The new subspace map interface.

validateItems()

virtual bool MemoryMapInterface::validateItems ( ) const

finaloverridevirtual

Validates the contained items.

Returns

True, if all the ports are valid, false otherwise.

Implements CommonInterface.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/MemoryMapInterface.h
