AddressBlockInterface Class Reference

Interface for editing address blocks. More...

#include <AddressBlockInterface.h>

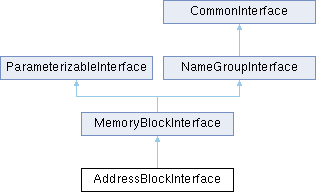

Inheritance diagram for AddressBlockInterface:

Public Member Functions
	AddressBlockInterface (QSharedPointer< AddressBlockValidator > blockValidator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter, BusInterfaceInterface *busInterface, RegisterInterface *subInterface, ParametersInterface *parameterInterface)
virtual	~AddressBlockInterface ()=default
virtual bool	acceptBlock (std::string const &blockName) const final
bool	addAccessPolicy (std::string const &blockName) const
virtual void	addBlock (int const &row, std::string const &newBlockName=std::string("")) final
AccessTypes::Access	getAccess (std::string const &blockName) const
int	getAccessPolicyCount (std::string const &blockName) const
std::string	getAccessString (std::string const &blockName, bool getAccessPolicyAccess=false) const
virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const final
virtual std::vector< std::string >	getExpressionsInSelectedItems (std::vector< std::string > const &itemNames) const final
std::string	getRangeExpression (std::string const &blockName) const
std::string	getRangeFormattedExpression (std::string const &blockName) const
RegisterInterface *	getSubInterface () const
General::Usage	getUsage (std::string const &blockName) const
std::string	getUsageString (std::string const &blockName) const
std::string	getVolatile (std::string const &blockName) const
std::string	getWidthExpression (std::string const &blockName) const
std::string	getWidthFormattedExpression (std::string const &blockName) const
std::string	getWidthValue (std::string const &blockName, int const &baseNumber=0) const
bool	hasRegisters (std::string const &blockName) const
bool	hasValidRange (std::string const &itemName) const
bool	hasValidUsage (std::string const &itemName) const
bool	hasValidWidth (std::string const &itemName) const
bool	setAccess (std::string const &blockName, std::string const &newAccess, bool setAccessPolicyAccess=false) const
bool	setRange (std::string const &blockName, std::string const &newRange) const
bool	setUsage (std::string const &blockName, std::string const &newUsage) const
bool	setVolatile (std::string const &blockName, bool newVolatile) const
bool	setVolatile (std::string const &blockName, std::string const &newVolatileValue)
bool	setWidth (std::string const &blockName, std::string const &newWidth) const
virtual bool	validateItems () const override final
Public Member Functions inherited from MemoryBlockInterface
	MemoryBlockInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter, BusInterfaceInterface *busInterface, ParametersInterface *parameterInterface)
virtual	~MemoryBlockInterface ()=default
virtual void	addBlock (std::string const &newBlockName=std::string(""))
void	copyRows (std::vector< int > selectedRows)
std::string	getBaseAddressExpression (std::string const &blockName) const
std::string	getBaseAddressFormattedExpression (std::string const &blockName) const
std::string	getBaseAddressValue (std::string const &blockName, int const &baseNumber=0) const
BusInterfaceInterface *	getBusInterface () const
std::string	getIndexedItemName (int itemIndex) const final
std::string	getIsPresentExpression (std::string const &blockName) const
std::string	getIsPresentFormattedExpression (std::string const &blockName) const
std::string	getIsPresentValue (std::string const &blockName, int const &baseNumber=0) const
virtual int	getItemIndex (std::string const &itemName) const override final
virtual std::vector< std::string >	getItemNames () const override final
int	getPasteRowCount () const
std::string	getRangeValue (std::string const &blockName, int const &baseNumber=0) const
bool	hasValidBaseAddress (std::string const &itemName) const
bool	hasValidIsPresent (std::string const &itemName) const
virtual int	itemCount () const override final
bool	itemHasValidName (std::string const &itemName) const
std::vector< std::string >	pasteRows ()
bool	removeBlock (std::string const &blockName)
void	setAddressUnitBits (std::string const &newAddressUnitbits)
bool	setBaseAddress (std::string const &blockName, std::string const &newBaseAdress) const
bool	setIsPresent (std::string const &blockName, std::string const &newIsPresent) const
void	setMemoryBlocks (QSharedPointer< QList< QSharedPointer< MemoryBlockBase > > > newMemoryBlocks)
virtual bool	setName (std::string const &currentName, std::string const &newName) override final
void	setupSubInterfaces (QSharedPointer< Component > newComponent)
Public Member Functions inherited from ParameterizableInterface
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.
	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~ParameterizableInterface ()=default
ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete
Public Member Functions inherited from NameGroupInterface
	NameGroupInterface ()
	NameGroupInterface (const NameGroupInterface &other)=delete
	No copying. No assignment.
virtual	~NameGroupInterface ()=default
virtual std::string	getDescription (std::string const &itemName) const
virtual std::string	getDisplayName (std::string const &itemName) const
virtual std::string	getShortDescription (std::string const &itemName) const
NameGroupInterface &	operator= (const NameGroupInterface &other)=delete
virtual bool	setDescription (std::string const &itemName, std::string const &newDescription)
virtual bool	setDisplayName (std::string const &itemName, std::string const &newDisplayName) const
bool	setShortDescription (std::string const &itemName, std::string const &newShortDescription) const
Public Member Functions inherited from CommonInterface
	CommonInterface ()=default
	CommonInterface (const CommonInterface &other)=delete
	No copying. No assignment.
virtual	~CommonInterface ()=default
CommonInterface &	operator= (const CommonInterface &other)=delete

Additional Inherited Members
Protected Member Functions inherited from MemoryBlockInterface
QString	getAddressUnitBits () const
QSharedPointer< MemoryBlockBase >	getBlock (std::string const &itemName) const
QSharedPointer< QList< QSharedPointer< MemoryBlockBase > > >	getBlocksData ()
QString	getNewBlockBaseAddress () const
QSharedPointer< AddressSpace >	getReferencedAddressSpace (QString const &masterBusReference) const
Protected Member Functions inherited from ParameterizableInterface
QString	formattedValueFor (QString const &expression) const
QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const
QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const
Protected Member Functions inherited from CommonInterface
QString	getUniqueName (std::string const &newName, std::string const &itemTypeName) const
bool	nameHasChanged (std::string const &newName, std::string const &oldName) const

Detailed Description

Interface for editing address blocks.

Definition at line 34 of file AddressBlockInterface.h.

Constructor & Destructor Documentation

AddressBlockInterface()

AddressBlockInterface::AddressBlockInterface	(	QSharedPointer< AddressBlockValidator >	blockValidator,
		QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter,
		BusInterfaceInterface *	busInterface,
		RegisterInterface *	subInterface,
		ParametersInterface *	parameterInterface )

The constructor.

Parameters

[in]	blockValidator	Validator for address blocks.
[in]	expressionParser	Parser for expressions.
[in]	expressionFormatter	Formatter for expressions.
[in]	busInterface	Interface for accessing bus interfaces.
[in]	subInterface	Interface for accessing registers.
[in]	parameterInterface	Interface for accessing parameters.

~AddressBlockInterface()

virtual AddressBlockInterface::~AddressBlockInterface ( )

virtualdefault

The destructor.

Member Function Documentation

acceptBlock()

virtual bool AddressBlockInterface::acceptBlock ( std::string const & blockName ) const

finalvirtual

Check if the selected memory block is an address block.

Parameters

[in]

blockName

Name of the selected memory block.

Returns

True, if the memory block is an address block, false otherwise.

Implements MemoryBlockInterface.

addAccessPolicy()

bool AddressBlockInterface::addAccessPolicy

(

std::string const &

blockName

)

const

Add a new access policy to an address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

True, if the operation was successful, otherwise false.

addBlock()

virtual void AddressBlockInterface::addBlock ( int const & row, std::string const & newBlockName = std::string("") )

finalvirtual

Add a new address block.

Parameters

[in]	row	Row of the new address block.
[in]	newBlockName	Name of the new address block.

Implements MemoryBlockInterface.

getAccess()

AccessTypes::Access AddressBlockInterface::getAccess

(

std::string const &

blockName

)

const

Get the access of the selected address block. Used in std14 access editor.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Access of the selected address block.

getAccessPolicyCount()

int AddressBlockInterface::getAccessPolicyCount

(

std::string const &

blockName

)

const

Get the number of access policies an address block has.

Parameters

[in]

blockName

Name of the selected address block.

Returns

The number of access policies of the selected address block.

getAccessString()

std::string AddressBlockInterface::getAccessString	(	std::string const &	blockName,
		bool	getAccessPolicyAccess = false ) const

Get the access string of the selected address block or one of its access policies specified by the accessPolicyIndex parameter. The default value of -1 returns the address block's access value. 0 and above returns an indexed access policy's access value.

Parameters

[in]	blockName	Name of the selected address block.
[in]	getAccessPolicyAccess	Flag indicating if access is fetched from access policy or directly from address block.

Returns

Access string of the selected address block or its access policy.

getAllReferencesToIdInItem()

virtual int AddressBlockInterface::getAllReferencesToIdInItem ( const std::string & itemName, std::string const & valueID ) const

finalvirtual

Calculate all the references to the selected ID in the selected item.

Parameters

[in]	itemName	Name of the selected item.
[in]	valueID	The selected ID.

Returns

Number of references to the selected ID in the selected item.

Reimplemented from MemoryBlockInterface.

getExpressionsInSelectedItems()

virtual std::vector< std::string > AddressBlockInterface::getExpressionsInSelectedItems ( std::vector< std::string > const & itemNames ) const

finalvirtual

Get the expressions in the selected items.

Parameters

[in]

itemNames

Names of the selected items.

Returns

The expressions of the selected items.

Implements MemoryBlockInterface.

getRangeExpression()

std::string AddressBlockInterface::getRangeExpression

(

std::string const &

blockName

)

const

Get the range expression of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Range expression of the selected address block.

getRangeFormattedExpression()

std::string AddressBlockInterface::getRangeFormattedExpression

(

std::string const &

blockName

)

const

Get the formatted range expression of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Formatted range expression of the selected address block.

getSubInterface()

RegisterInterface * AddressBlockInterface::getSubInterface

(

)

const

Get the sub interface.

Returns

Interface for accessing registers.

getUsage()

General::Usage AddressBlockInterface::getUsage

(

std::string const &

blockName

)

const

Get the usage of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Usage of the selected address block.

getUsageString()

std::string AddressBlockInterface::getUsageString

(

std::string const &

blockName

)

const

Get the usage string of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Usage string of the selected address block.

getVolatile()

std::string AddressBlockInterface::getVolatile

(

std::string const &

blockName

)

const

Get the volatile value of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Volatile value of the selected address block.

getWidthExpression()

std::string AddressBlockInterface::getWidthExpression

(

std::string const &

blockName

)

const

Get the width expression of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Width expression of the selected address block.

getWidthFormattedExpression()

std::string AddressBlockInterface::getWidthFormattedExpression

(

std::string const &

blockName

)

const

Get the formatted width expression of the selected address block.

Parameters

[in]

blockName

Name of the selected address block.

Returns

Formatted width expression of the selected address block.

getWidthValue()

std::string AddressBlockInterface::getWidthValue	(	std::string const &	blockName,
		int const &	baseNumber = 0 ) const

Get the calculated width value of the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated width value of the selected address block.

hasRegisters()

bool AddressBlockInterface::hasRegisters

(

std::string const &

blockName

)

const

Check if the selected address block contains registers.

Parameters

[in]

blockName

Name of the selected address block.

Returns

True, if the address block contains registers, false otherwise.

hasValidRange()

bool AddressBlockInterface::hasValidRange

(

std::string const &

itemName

)

const

Check if the selected address block has a valid range.

Parameters

[in]

itemName

Name of the selected address block.

Returns

True, if the range is valid, false otherwise.

hasValidUsage()

bool AddressBlockInterface::hasValidUsage

(

std::string const &

itemName

)

const

Check if the selected address block has a valid usage.

Parameters

[in]

itemName

Name of the selected address block.

Returns

True, if the usage is valid, false otherwise.

hasValidWidth()

bool AddressBlockInterface::hasValidWidth

(

std::string const &

itemName

)

const

Check if the selected address block has a valid width.

Parameters

[in]

itemName

Name of the selected address block.

Returns

True, if the width is valid, false otherwise.

setAccess()

bool AddressBlockInterface::setAccess	(	std::string const &	blockName,
		std::string const &	newAccess,
		bool	setAccessPolicyAccess = false ) const

Set a new access for the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	newAccess	New access value.
[in]	getAccessPolicyAccess	Flag indicating if access is set to access policy or directly to address block.

Returns

True, if successful, false otherwise.

setRange()

bool AddressBlockInterface::setRange	(	std::string const &	blockName,
		std::string const &	newRange ) const

Set a new range value for the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	newRange	New range value.

Returns

True, if successful, false otherwise.

setUsage()

bool AddressBlockInterface::setUsage	(	std::string const &	blockName,
		std::string const &	newUsage ) const

Set a new usage value for the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	newUsage	New usage value.

Returns

True, if successful, false otherwise.

setVolatile() [1/2]

bool AddressBlockInterface::setVolatile	(	std::string const &	blockName,
		bool	newVolatile ) const

Set a new volatile value for the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	newVolatile	New volatile value.

Returns

True, if successful, false otherwise.

setVolatile() [2/2]

bool AddressBlockInterface::setVolatile	(	std::string const &	blockName,
		std::string const &	newVolatileValue )

Set a new volatile value for the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	newVolatileValue	The new volatile value.

Returns

True, if successful, false otherwise.

setWidth()

bool AddressBlockInterface::setWidth	(	std::string const &	blockName,
		std::string const &	newWidth ) const

Set a new width value for the selected address block.

Parameters

[in]	blockName	Name of the selected address block.
[in]	newWidth	New width value.

Returns

True, if successful, false otherwise.

validateItems()

virtual bool AddressBlockInterface::validateItems ( ) const

finaloverridevirtual

Validates the contained items.

Returns

True, if all the ports are valid, false otherwise.

Implements MemoryBlockInterface.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/AddressBlockInterface.h
