RegisterInterface Class Reference

Interface for editing registers. More...

#include <RegisterInterface.h>

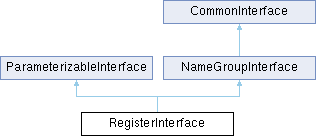

Inheritance diagram for RegisterInterface:

Public Member Functions
	RegisterInterface (QSharedPointer< RegisterValidator > validator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter, FieldInterface *subInterface, AccessPolicyInterface *accessPolicyInterface)
virtual	~RegisterInterface ()=default
bool	addAccessPolicy (std::string const &registerName)
void	addRegister (int const &row, int const &dataIndex, std::string const &newRegisterName=std::string(""))
void	addRegister (std::string const &newRegisterName=std::string(""))
void	copyRows (std::vector< int > const &selectedRows)
AccessTypes::Access	getAccess (std::string const &registerName) const
int	getAccessPolicyCount (std::string const &registerName) const
AccessPolicyInterface *	getAccessPolicyInterface () const
std::string	getAccessString (std::string const &registerName, bool getAccessPolicyAccess=false) const
virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const override final
std::string	getDimensionExpression (std::string const &registerName) const
std::string	getDimensionFormattedExpression (std::string const &registerName) const
std::string	getDimensionValue (std::string const &registerName, int const &baseNumber=0) const
std::vector< std::string >	getExpressionsInSelectedRegisters (std::vector< std::string > const &registerNames) const
std::string	getIndexedItemName (int itemIndex) const final
std::string	getIsPresentExpression (std::string const &registerName) const
std::string	getIsPresentFormattedExpression (std::string const &registerName) const
std::string	getIsPresentValue (std::string const &registerName, int const &baseNumber=0) const
virtual int	getItemIndex (std::string const &itemName) const override final
virtual std::vector< std::string >	getItemNames () const override final
std::string	getOffsetExpression (std::string const &registerName) const
std::string	getOffsetFormattedExpression (std::string const &registerName) const
std::string	getOffsetValue (std::string const &registerName, int const &baseNumber=0) const
int	getPasteRowCount () const
std::string	getSizeExpression (std::string const &registerName) const
std::string	getSizeFormattedExpression (std::string const &registerName) const
std::string	getSizeValue (std::string const &registerName, int const &baseNumber=0) const
FieldInterface *	getSubInterface () const
std::string	getVolatile (std::string const &registerName) const
bool	hasValidDimension (std::string const &registerName) const
bool	hasValidIsPresent (std::string const &registerName) const
bool	hasValidOffset (std::string const &registerName) const
bool	hasValidSize (std::string const &registerName) const
int	indexInRegisterData (int const &index) const
virtual int	itemCount () const override final
virtual bool	itemHasValidName (std::string const &itemName) const override final
std::vector< std::string >	pasteRows ()
int	registerDataCount () const
bool	removeRegister (std::string const &registerName, int const &dataIndex)
bool	setAccess (std::string const &registerName, std::string const &newAccess, bool setAccessPolicyAccess=false)
void	setAddressUnitBits (int const &newAddressUnitbits)
bool	setDimension (std::string const &registerName, std::string const &newDimension)
bool	setIsPresent (std::string const &registerName, std::string const &newIsPresent)
virtual bool	setName (std::string const &currentName, std::string const &newName) override final
bool	setOffset (std::string const &registerName, std::string const &newOffset)
void	setRegisters (QSharedPointer< QList< QSharedPointer< RegisterBase > > > newRegisterData)
bool	setSize (std::string const &registerName, std::string const &newSize)
bool	setVolatile (std::string const &registerName, std::string const &newVolatile)
virtual bool	validateItems () const override final
Public Member Functions inherited from ParameterizableInterface
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.
	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~ParameterizableInterface ()=default
ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete
Public Member Functions inherited from NameGroupInterface
	NameGroupInterface ()
	NameGroupInterface (const NameGroupInterface &other)=delete
	No copying. No assignment.
virtual	~NameGroupInterface ()=default
virtual std::string	getDescription (std::string const &itemName) const
virtual std::string	getDisplayName (std::string const &itemName) const
virtual std::string	getShortDescription (std::string const &itemName) const
NameGroupInterface &	operator= (const NameGroupInterface &other)=delete
virtual bool	setDescription (std::string const &itemName, std::string const &newDescription)
virtual bool	setDisplayName (std::string const &itemName, std::string const &newDisplayName) const
bool	setShortDescription (std::string const &itemName, std::string const &newShortDescription) const
Public Member Functions inherited from CommonInterface
	CommonInterface ()=default
	CommonInterface (const CommonInterface &other)=delete
	No copying. No assignment.
virtual	~CommonInterface ()=default
CommonInterface &	operator= (const CommonInterface &other)=delete

Additional Inherited Members
Protected Member Functions inherited from ParameterizableInterface
QString	formattedValueFor (QString const &expression) const
QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const
QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const
Protected Member Functions inherited from CommonInterface
QString	getUniqueName (std::string const &newName, std::string const &itemTypeName) const
bool	nameHasChanged (std::string const &newName, std::string const &oldName) const

Detailed Description

Interface for editing registers.

Definition at line 34 of file RegisterInterface.h.

Constructor & Destructor Documentation

RegisterInterface()

RegisterInterface::RegisterInterface	(	QSharedPointer< RegisterValidator >	validator,
		QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter,
		FieldInterface *	subInterface,
		AccessPolicyInterface *	accessPolicyInterface )

The constructor.

Parameters

[in]	validator	Validator for registers.
[in]	expressionParser	Parser for expressions.
[in]	expressionFormatter	Formatter for expressions.
[in]	subInterface	Interface for accessing fields.

~RegisterInterface()

virtual RegisterInterface::~RegisterInterface ( )

virtualdefault

The destructor.

Member Function Documentation

addAccessPolicy()

bool RegisterInterface::addAccessPolicy

(

std::string const &

registerName

)

Adds a new access policy to the selected register.

Parameters

[in]

registerName

The selected register.

Returns

True, if operation was successful, otherwise false.

addRegister() [1/2]

void RegisterInterface::addRegister	(	int const &	row,
		int const &	dataIndex,
		std::string const &	newRegisterName = std::string("") )

Add a new register, inserting it to position specified by row and dataIndex.

Parameters

[in]	row	Row of the new register.
[in]	dataIndex	Index of the new register in the register data.
[in]	newRegisterName	Name of the new register.

addRegister() [2/2]

void RegisterInterface::addRegister

(

std::string const &

newRegisterName = std::string("")

)

Add a new register. This overload should be preferred when using Python.

Parameters

[in]

newRegisterName

Name of the new register.

copyRows()

void RegisterInterface::copyRows

(

std::vector< int > const &

selectedRows

)

Copy the selected registers.

Parameters

[in]

selectedRows

Indexes of the selected registers.

getAccess()

AccessTypes::Access RegisterInterface::getAccess

(

std::string const &

registerName

)

const

Get the access of the selected register or access policy given by the access policy index.

Parameters

[in]	registerName	Name of the selected register.
[in]	accessPolicyIndex	The index of the selected access policy.

Returns

The access value of the selected register.

getAccessPolicyCount()

int RegisterInterface::getAccessPolicyCount

(

std::string const &

registerName

)

const

Get the number of access policies for a given register.

Parameters

[in]

registerName

The name of the register to get the number off access policies of.

Returns

The number of access policies for the given register.

getAccessPolicyInterface()

AccessPolicyInterface * RegisterInterface::getAccessPolicyInterface

(

)

const

Get the access policy interface.

@return Interface for accessing the register access policies.

getAccessString()

std::string RegisterInterface::getAccessString	(	std::string const &	registerName,
		bool	getAccessPolicyAccess = false ) const

Get the access string of the selected register or first access policy.

Parameters

[in]	registerName	Name of the selected register.
[in]	getAccessPolicyAccess	Flag indicating if access is fetched from access policy or directly from register. Access is fetched from first access policy, if true.

Returns

The access string of the selected register.

getAllReferencesToIdInItem()

virtual int RegisterInterface::getAllReferencesToIdInItem ( const std::string & itemName, std::string const & valueID ) const

finaloverridevirtual

Calculate all the references to the selected ID in the selected item.

Parameters

[in]	itemName	Name of the selected item.
[in]	valueID	The selected ID.

Returns

Number of references to the selected ID in the selected item.

Implements ParameterizableInterface.

getDimensionExpression()

std::string RegisterInterface::getDimensionExpression

(

std::string const &

registerName

)

const

Get the dimension expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Dimension expression of the selected register.

getDimensionFormattedExpression()

std::string RegisterInterface::getDimensionFormattedExpression

(

std::string const &

registerName

)

const

Get the formatted dimension expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Formatted dimension expression of the selected register.

getDimensionValue()

std::string RegisterInterface::getDimensionValue	(	std::string const &	registerName,
		int const &	baseNumber = 0 ) const

Get the calculated dimension value of the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated dimension value of the selected register.

getExpressionsInSelectedRegisters()

std::vector< std::string > RegisterInterface::getExpressionsInSelectedRegisters

(

std::vector< std::string > const &

registerNames

)

const

Get the expressions in the selected registers.

Parameters

[in]

registerNames

Names of the selected registers.

Returns

The expressions of the selected registers.

getIndexedItemName()

std::string RegisterInterface::getIndexedItemName ( int itemIndex ) const

finalvirtual

Get name of the indexed item.

Parameters

[in]

itemIndex

Index of the selected item.

Returns

Name of the selected item.

Implements NameGroupInterface.

getIsPresentExpression()

std::string RegisterInterface::getIsPresentExpression

(

std::string const &

registerName

)

const

Get the is present expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Is present expression of the selected register.

getIsPresentFormattedExpression()

std::string RegisterInterface::getIsPresentFormattedExpression

(

std::string const &

registerName

)

const

Get the formatted is present expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Formatted is present expression of the selected register.

getIsPresentValue()

std::string RegisterInterface::getIsPresentValue	(	std::string const &	registerName,
		int const &	baseNumber = 0 ) const

Get the calculated is present value of the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated is present value of the selected register.

getItemIndex()

virtual int RegisterInterface::getItemIndex ( std::string const & itemName ) const

finaloverridevirtual

Get index of the selected item.

Parameters

[in]

itemName

Name of the selected item.

Returns

Index of the selected item.

Implements NameGroupInterface.

getItemNames()

virtual std::vector< std::string > RegisterInterface::getItemNames ( ) const

finaloverridevirtual

Get the names of the available items.

Returns

Names of the available items.

Implements CommonInterface.

getOffsetExpression()

std::string RegisterInterface::getOffsetExpression

(

std::string const &

registerName

)

const

Get the offset expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Offset expression of the selected register.

getOffsetFormattedExpression()

std::string RegisterInterface::getOffsetFormattedExpression

(

std::string const &

registerName

)

const

Get the formatted offset expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Formatted offset expression of the selected register.

getOffsetValue()

std::string RegisterInterface::getOffsetValue	(	std::string const &	registerName,
		int const &	baseNumber = 0 ) const

Get the calculated offset value of the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated offset value of the selected register.

getPasteRowCount()

int RegisterInterface::getPasteRowCount

(

)

const

Get the number of pasted registers.

Returns

Number of the pasted registers.

getSizeExpression()

std::string RegisterInterface::getSizeExpression

(

std::string const &

registerName

)

const

Get the size expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Size expression of the selected register.

getSizeFormattedExpression()

std::string RegisterInterface::getSizeFormattedExpression

(

std::string const &

registerName

)

const

Get the formatted size expression of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

Formatted size expression of the selected register.

getSizeValue()

std::string RegisterInterface::getSizeValue	(	std::string const &	registerName,
		int const &	baseNumber = 0 ) const

Get the calculated size value of the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	baseNumber	Base for displaying the value.

Returns

Calculated size value of the selected register.

getSubInterface()

FieldInterface * RegisterInterface::getSubInterface

(

)

const

Get the sub interface.

Returns

Interface for accessing fields.

getVolatile()

std::string RegisterInterface::getVolatile

(

std::string const &

registerName

)

const

Get the volatile of the selected register.

Parameters

[in]

registerName

Name of the selected register.

Returns

The volatile value of the selected register.

hasValidDimension()

bool RegisterInterface::hasValidDimension

(

std::string const &

registerName

)

const

Check if the selected register has a valid dimension.

Parameters

[in]

registerName

Name of the selected register.

Returns

True, if the dimension is valid, false otherwise.

hasValidIsPresent()

bool RegisterInterface::hasValidIsPresent

(

std::string const &

registerName

)

const

Check if the selected register has a valid is present value.

Parameters

[in]

registerName

Name of the selected register.

Returns

True, if the is present value is valid, false otherwise.

hasValidOffset()

bool RegisterInterface::hasValidOffset

(

std::string const &

registerName

)

const

Check if the selected register has a valid offset.

Parameters

[in]

registerName

Name of the selected register.

Returns

True, if the offset is valid, false otherwise.

hasValidSize()

bool RegisterInterface::hasValidSize

(

std::string const &

registerName

)

const

Check if the selected register has a valid size.

Parameters

[in]

registerName

Name of the selected register.

Returns

True, if the size is valid, false otherwise.

indexInRegisterData()

int RegisterInterface::indexInRegisterData

(

int const &

index

)

const

Get the selected index as the index of register data.

Parameters

[in]

index

The selected index.

Returns

The selected index transformed to register data index.

itemCount()

virtual int RegisterInterface::itemCount ( ) const

finaloverridevirtual

Get the number of available items.

Returns

Number of available items.

Implements CommonInterface.

itemHasValidName()

virtual bool RegisterInterface::itemHasValidName ( std::string const & itemName ) const

finaloverridevirtual

Check if the selected item has a valid name.

Parameters

[in]

itemName

Name of the selected item.

Returns

True, if the name is valid, false otherwise.

Implements NameGroupInterface.

pasteRows()

std::vector< std::string > RegisterInterface::pasteRows

(

)

Paste the selected registers.

Returns

Names of the pasted registers.

registerDataCount()

int RegisterInterface::registerDataCount

(

)

const

Get the number of register data.

Returns

Number of register data.

removeRegister()

bool RegisterInterface::removeRegister	(	std::string const &	registerName,
		int const &	dataIndex )

Remove the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	dataIndex	Index of the removed register in the register data.

Returns

True, if successful, false otherwise.

setAccess()

bool RegisterInterface::setAccess	(	std::string const &	registerName,
		std::string const &	newAccess,
		bool	setAccessPolicyAccess = false )

Set the access value for the selected register or its access policy given by the access policy index.

Parameters

[in]	registerName	Name of the selected register.
[in]	newAccess	The new access value.
[in]	getAccessPolicyAccess	Flag indicating if access is set to access policy or directly to register. Access is set to first access policy, if true.

Returns

True, if successful, false otherwise.

setAddressUnitBits()

void RegisterInterface::setAddressUnitBits

(

int const &

newAddressUnitbits

)

Change the value for address unit bits.

Parameters

[in]

newAddressUnitbits

The new value for address unit bits.

setDimension()

bool RegisterInterface::setDimension	(	std::string const &	registerName,
		std::string const &	newDimension )

Set a new dimension value for the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	newDimension	New dimension value.

Returns

True, if successful, false otherwise.

setIsPresent()

bool RegisterInterface::setIsPresent	(	std::string const &	registerName,
		std::string const &	newIsPresent )

Set a new is present value for the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	newIsPresent	New is present value.

Returns

True, if successful, false otherwise.

setName()

virtual bool RegisterInterface::setName ( std::string const & currentName, std::string const & newName )

finaloverridevirtual

Set a new name for the selected item.

Parameters

[in]	currentName	Name of the selected item.
[in]	newName	New name for the item.

Returns

True, if successful, false otherwise.

Implements NameGroupInterface.

setOffset()

bool RegisterInterface::setOffset	(	std::string const &	registerName,
		std::string const &	newOffset )

Set a new offset value for the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	newOffset	New offset value.

Returns

True, if successful, false otherwise.

setRegisters()

void RegisterInterface::setRegisters

(

QSharedPointer< QList< QSharedPointer< RegisterBase > > >

newRegisterData

)

Set available registers.

Parameters

[in]

newRegisterData

The new register data.

setSize()

bool RegisterInterface::setSize	(	std::string const &	registerName,
		std::string const &	newSize )

Set a new size value for the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	newSize	New size value.

Returns

True, if successful, false otherwise.

setVolatile()

bool RegisterInterface::setVolatile	(	std::string const &	registerName,
		std::string const &	newVolatile )

Set the volatile for the selected register.

Parameters

[in]	registerName	Name of the selected register.
[in]	newVolatile	The new volatile value.

Returns

True, if successful, false otherwise.

validateItems()

virtual bool RegisterInterface::validateItems ( ) const

finaloverridevirtual

Validates the contained items.

Returns

True, if all the ports are valid, false otherwise.

Implements CommonInterface.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/RegisterInterface.h
