ModuleParameterInterface Class Reference

Interface for editing module parameters. More...

#include <ModuleParameterInterface.h>

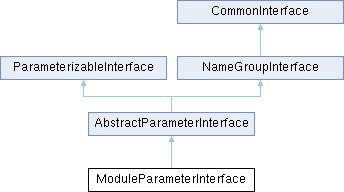

Inheritance diagram for ModuleParameterInterface:

Public Member Functions
	ModuleParameterInterface (const ModuleParameterInterface &other)=delete
	No copying. No assignment.
	ModuleParameterInterface (QSharedPointer< ParameterValidator > validator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter, QSharedPointer< ComponentInstantiationParameterFinder > parameterFinder)
virtual	~ModuleParameterInterface ()=default
void	addModuleParameter (int const &row, std::string const &newParameterName=std::string(""))
std::string	getDataType (std::string const &parameterName) const
std::string	getIndexedItemName (int itemIndex) const override
virtual int	getItemIndex (std::string const &itemName) const override
virtual std::vector< std::string >	getItemNames () const override
std::string	getUsageType (std::string const &parameterName) const
virtual int	itemCount () const override
ModuleParameterInterface &	operator= (const ModuleParameterInterface &other)=delete
bool	removeModuleParameter (std::string const &parameterName)
bool	setDataType (std::string const &parameterName, std::string const &newDataType)
void	setModuleParameters (QSharedPointer< ComponentInstantiation > instantiation)
bool	setUsageType (std::string const &parameterName, std::string const &newUsageType)
Public Member Functions inherited from AbstractParameterInterface
	AbstractParameterInterface (const AbstractParameterInterface &other)=delete
	No copying. No assignment.
	AbstractParameterInterface (QSharedPointer< ParameterValidator > validator, QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~AbstractParameterInterface ()=default
virtual int	getAllReferencesToIdInItem (const std::string &itemName, std::string const &valueID) const override final
std::string	getArrayLeftExpression (std::string const &parameterName) const
std::string	getArrayLeftFormattedExpression (std::string const &parameterName) const
std::string	getArrayLeftValue (std::string const &parameterName, int const &baseNumber=0) const
std::string	getArrayRightExpression (std::string const &parameterName) const
std::string	getArrayRightFormattedExpression (std::string const &parameterName) const
std::string	getArrayRightValue (std::string const &parameterName, int const &baseNumber=0) const
std::string	getBitWidthLeftExpression (std::string const &parameterName) const
std::string	getBitWidthLeftFormattedExpression (std::string const &parameterName) const
std::string	getBitWidthLeftValue (std::string const &parameterName, int const &baseNumber=0) const
std::string	getBitWidthRightExpression (std::string const &parameterName) const
std::string	getBitWidthRightFormattedExpression (std::string const &parameterName) const
std::string	getBitWidthRightValue (std::string const &parameterName, int const &baseNumber=0) const
std::string	getChoice (std::string const &parameterName) const
std::string	getDisplayName (std::string const &parameterName) const
std::vector< std::string >	getExpressionsInSelectedItems (std::vector< std::string > parameterNames) const
std::string	getID (std::string const &parameterName) const
std::string	getMaximum (std::string const &parameterName) const
std::string	getMinimum (std::string const &parameterName) const
std::string	getResolve (std::string const &parameterName) const
std::string	getType (std::string const &parameterName) const
int	getUsageCount (std::string const &parameterName) const
std::string	getValue (std::string const &parameterName, int const &baseNumber=0) const
std::string	getValueExpression (std::string const &parameterName) const
std::string	getValueFormattedExpression (std::string const &parameterName) const
bool	hasValidArrayValues (std::string const &parameterName) const
bool	hasValidBitWidth (std::string const &parameterName) const
bool	hasValidChoice (std::string const &parameterName) const
bool	hasValidMaximum (std::string const &parameterName) const
bool	hasValidMinimum (std::string const &parameterName) const
bool	hasValidResolve (std::string const &parameterName) const
bool	hasValidType (std::string const &parameterName) const
bool	hasValidValue (std::string const &parameterName) const
bool	increaseUsageCount (std::string const &parameterName)
virtual bool	itemHasValidName (std::string const &itemName) const override final
AbstractParameterInterface &	operator= (const AbstractParameterInterface &other)=delete
bool	reduceUsageCount (std::string const &parameterName)
bool	setArrayLeft (std::string const &parameterName, std::string const &newArrayLeft)
bool	setArrayRight (std::string const &parameterName, std::string const &newArrayRight)
bool	setBitWidthLeft (std::string const &parameterName, std::string const &newBitWidthLeft)
bool	setBitWidthRight (std::string const &parameterName, std::string const &newBitWidthRight)
bool	setChoice (std::string const &parameterName, std::string const &newChoice)
void	setChoices (QSharedPointer< QList< QSharedPointer< Choice > > > newChoices)
bool	setDisplayName (std::string const &parameterName, std::string const &newDisplayName)
bool	setID (std::string const &parameterName, std::string const &newID)
bool	setMaximum (std::string const &parameterName, std::string const &newMaximum)
bool	setMinimum (std::string const &parameterName, std::string const &newMinimum)
virtual bool	setName (std::string const &currentName, std::string const &newName) override final
bool	setResolve (std::string const &parameterName, std::string const &newResolve)
bool	setType (std::string const &parameterName, std::string const &newType)
bool	setUsageCount (std::string const &parameterName, int const &newUsageCount)
bool	setValue (std::string const &parameterName, std::string const &newValue)
virtual bool	validateItems () const override final
Public Member Functions inherited from ParameterizableInterface
	ParameterizableInterface (const ParameterizableInterface &other)=delete
	No copying. No assignment.
	ParameterizableInterface (QSharedPointer< ExpressionParser > expressionParser, QSharedPointer< ExpressionFormatter > expressionFormatter)
virtual	~ParameterizableInterface ()=default
ParameterizableInterface &	operator= (const ParameterizableInterface &other)=delete
Public Member Functions inherited from NameGroupInterface
	NameGroupInterface ()
	NameGroupInterface (const NameGroupInterface &other)=delete
	No copying. No assignment.
virtual	~NameGroupInterface ()=default
virtual std::string	getDescription (std::string const &itemName) const
virtual std::string	getShortDescription (std::string const &itemName) const
NameGroupInterface &	operator= (const NameGroupInterface &other)=delete
virtual bool	setDescription (std::string const &itemName, std::string const &newDescription)
virtual bool	setDisplayName (std::string const &itemName, std::string const &newDisplayName) const
bool	setShortDescription (std::string const &itemName, std::string const &newShortDescription) const
Public Member Functions inherited from CommonInterface
	CommonInterface ()=default
	CommonInterface (const CommonInterface &other)=delete
	No copying. No assignment.
virtual	~CommonInterface ()=default
CommonInterface &	operator= (const CommonInterface &other)=delete

Additional Inherited Members
Protected Member Functions inherited from ParameterizableInterface
QString	formattedValueFor (QString const &expression) const
QString	parseExpressionToBaseNumber (QString const &expression, unsigned int const &baseNumber, bool *expressionIsValid=nullptr) const
QString	parseExpressionToDecimal (QString const &expression, bool *expressionIsValid=nullptr) const
Protected Member Functions inherited from CommonInterface
QString	getUniqueName (std::string const &newName, std::string const &itemTypeName) const
bool	nameHasChanged (std::string const &newName, std::string const &oldName) const

Detailed Description

Interface for editing module parameters.

Definition at line 26 of file ModuleParameterInterface.h.

Constructor & Destructor Documentation

ModuleParameterInterface() [1/2]

ModuleParameterInterface::ModuleParameterInterface	(	QSharedPointer< ParameterValidator >	validator,
		QSharedPointer< ExpressionParser >	expressionParser,
		QSharedPointer< ExpressionFormatter >	expressionFormatter,
		QSharedPointer< ComponentInstantiationParameterFinder >	parameterFinder )

The constructor.

Parameters

[ni]	validator Validator for parameters.
[ni]	expressionParser Parser for expressions.
[ni]	expressionFormatter Formatter for expressions.
[ni]	parameterFinder Parameter finder for component instantiation parameters.

~ModuleParameterInterface()

virtual ModuleParameterInterface::~ModuleParameterInterface ( )

virtualdefault

The destructor.

ModuleParameterInterface() [2/2]

ModuleParameterInterface::ModuleParameterInterface ( const ModuleParameterInterface & other )

delete

No copying. No assignment.

Member Function Documentation

addModuleParameter()

void ModuleParameterInterface::addModuleParameter	(	int const &	row,
		std::string const &	newParameterName = std::string("") )

Add a new module parameter.

Parameters

[in]	row	Index of the new parameter.
[in]	newParameterName	New of the new parameter.

getDataType()

std::string ModuleParameterInterface::getDataType

(

std::string const &

parameterName

)

const

Get the data type of the selected module parameter.

Parameters

[in]

parameterName

Name of the selected module parameter.

Returns

Data type of the selected module parameter.

getIndexedItemName()

std::string ModuleParameterInterface::getIndexedItemName ( int itemIndex ) const

overridevirtual

Get name of the indexed item.

Parameters

[in]

itemIndex

Index of the selected item.

Returns

Name of the selected item.

Implements NameGroupInterface.

getItemIndex()

virtual int ModuleParameterInterface::getItemIndex ( std::string const & itemName ) const

overridevirtual

Get index of the selected item.

Parameters

[in]

itemName

Name of the selected item.

Returns

Index of the selected item.

Implements NameGroupInterface.

getItemNames()

virtual std::vector< std::string > ModuleParameterInterface::getItemNames ( ) const

overridevirtual

Get the names of the available items.

Returns

Names of the available items.

Implements CommonInterface.

getUsageType()

std::string ModuleParameterInterface::getUsageType

(

std::string const &

parameterName

)

const

Get the usage type of the selected module parameter.

Parameters

[in]

parameterName

Name of the selected module parameter.

Returns

Usage type of the selected module parameter.

itemCount()

virtual int ModuleParameterInterface::itemCount ( ) const

overridevirtual

Get the number of available items.

Returns

Number of available items.

Implements CommonInterface.

operator=()

ModuleParameterInterface & ModuleParameterInterface::operator= ( const ModuleParameterInterface & other )

delete

removeModuleParameter()

bool ModuleParameterInterface::removeModuleParameter

(

std::string const &

parameterName

)

Remove the selected module parameter.

Parameters

[in]

parameterName

New of the selected parameter.

Returns

True, if successful, false otherwise.

setDataType()

bool ModuleParameterInterface::setDataType	(	std::string const &	parameterName,
		std::string const &	newDataType )

Set a new data type for the selected module parameter.

Parameters

[in]	parameterName	Name of the selected module parameter.
[in]	newDataType	New data type.

Returns

True, if successful, false otherwise.

setModuleParameters()

void ModuleParameterInterface::setModuleParameters

(

QSharedPointer< ComponentInstantiation >

instantiation

)

Set available module parameters.

Parameters

[in]

instantiation

Component instantiation containing the new module parameters.

setUsageType()

bool ModuleParameterInterface::setUsageType	(	std::string const &	parameterName,
		std::string const &	newUsageType )

Set a new usage type for the selected module parameter.

Parameters

[in]	parameterName	Name of the selected module parameter.
[in]	newUsageType	New usage type.

Returns

True, if successful, false otherwise.

---

The documentation for this class was generated from the following file:

• kactus2dev/KactusAPI/include/ModuleParameterInterface.h
